EN-3KW-Q5 Vertical Axis Wind Turbine Generator VAWT

The permanent magnetic EN-3KW-Q5 wind turbine is combined by savonius and darrieus turbines, has high-efficient energy output, is the most compact, quiet, rugged and reliable vertical axis small wind turbine. The EN-3KW-Q5 wind turbine is widely used in LED lighting system, signal & camera security, telecommunication field for off-grid residence. The EN-3KW-Q5 wind turbine is extremely easy to integrate with solar panels to create off-grid power systems that require modest amounts of energy. Available in 120V for battery charging applications.
Size:
Availability:

Vertical Axis Wind Turbine Generator VAWT EN-3KW-Q5

Product Description

Overview

  • The EN-3KW-Q5 is designed on a unique low inertia axial flux generator which utilizes Neodymium permanent magnetic material.

  • The EN-3KW-Q5 has zero cogging with its highly efficient, allow the turbine to generate power at very low wind speeds and deliver a high output in working wind speeds.

  • The EN-3KW-Q5 can survive from winds up to 40m/s by a passive aero-dynamic design that reduces turbine RPM and power

    output at a certain threshold.

  • Therobust aluminum alloy chassis and stainless steel components are protected by the aerospace grade coatings and anodizing.


Application

  • The EN-3KW-Q5 wind turbine is widely used in LED light, street signal & camera security, outdoor telecommunication system and off-grid residence.

  • The EN-3KW-Q5 wind turbine is extremely easy to integrate with solar panels to consist a wind & solar hybrid off-grid power systems for consistent and

    clean energy. Available in 12V, 24V and 48V for battery charging.


Advantage

  • Low start up speed; high wind energy utilization; beautiful appearance; low vibration

  • Human friendly design, easy installation, maintenance and repair.

  • Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.

  • The generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque. Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.


Specification sheet

Model

EN-1KW-Q5

EN-2KW-Q5

EN-3KW-Q5

                   Rated power

1000W

2000W

3000W

Maximum power

1050W

2100W

3100W

Output voltage

48V

96V/120V

120V

Start-up wind   speed

3m/s

3m/s

3m/s

Rated wind speed

12m/s

13m/s

13m/s

Survival wind   speed

45m/s

45m/s

45m/s

Turbine height

1.85m

2.4m

3.0m

Wheel dimeter

2m

2.5m

2.8m

Number of blades

6 pcs

Blades material

Casting aluminum   alloy

Generator type

Three phase   permanent magnet ac synchronous generator/maglev generator

Control system

Electromagnet

Speed regulation

Automatically   adjust windward direction

Working   temperature

-40℃~80

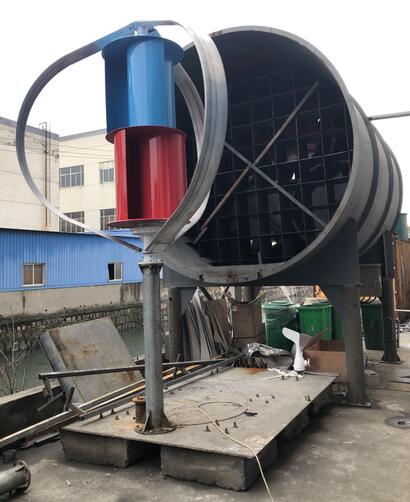

EN-3KW-Q5 Wind turbine Power Curve Test

123       风洞测试小

Packaging & Delivery

We as the most professional supplier and manufacturer of wind turbines, we can accept one piece & instant delivery to any place in the world.

Our clients can choose the delivery service

  • by expresss

  • by air

  • by sea

  • by truck.

wind turbine delivery



Certificates
CE certification
Project


Q project

大Q使用


FAQ

Q1:  Is the wind turbine easy to install ? What about the installation condition?

A:  Our small wind turbine is very convenient and easy to install. It is fixed by the flange and bolts to the base. we will offer the installation manual with the goods together, you can finish installtion within 3 minutes by following the manual.

     When installation, you'd better choose the flat and open area. We recommend the installation height should be at least 6m above ground, because higher area has stronger wind and steadier airflow.  If installed on the roof top, it's better has 5m space to the obstacles. The trees and buildings can block airflow. The obstacles create a slow and turbulent airflow area in front of and behind them, where it should be avoided to install the wind turbine.

Q2: What's the materials of the wind turbines?What's your advantage ?

A:  We use aluminum alloy material for the generator shell and blades, compared with other cast iron products, our products are light in weight, good in balance, and the power output is more stable. Our turbine blades design has the best fatigue strength and mechanical properties, can withstand the extremely severe conditions of storms and random loads. The turbine surface is smooth to reduce wind drag, the surface coating will resistant to corrosion and strong sunlight.


Q3: Which type is the generator?What's your advantage ?

A:  Our wind turbines uses a three-phase permanent magnet synchronous generator.  Its advantages is simple structure, small volume, light weight, small loss, high efficiency and high power factor. It is mainly used for high performance servo drive systems and DC generator replacement where require a quick and precise correspond and wide speed range.


Q4: How to maintain the wind turbines for extending their service life ?

A:  1. Check the stay wires of the supporting pole, if it is loose, you should tighten it in time. Multiple checkings should be repeated during the first months after installation. The stay wires should also be checked after very strong wind.

2. Check and secure that the connection point in the electrcity circuit are secured well.

3. Regular checking and maintenance for the batteries.

4. Fix the supporting pole more firmly or put down it before severe weather coming such as hurricanes.
