Hand type Electric Vehicles charger 16A 32A 100V-240VAC portable ev charger

Portable type, easy to take;
10 hours advance pre-setting charge
16A 32A by replacement plug;
With memory function, charge at last time current;
OLED display
Pure cooper cable, apply with IEC60
Cable length: 5 meters long or make as requested
  • EE-EVC32

  • ENGELEC

  • EE-EVC32

Availability:

Hand type Electric Vehicles charger 16A 32A 100V-240VAC portable ev charger


Main Features:

  • Portable type, easy to take;

  • 10 hours advance pre-setting charge

  • 16A 32A by replacement plug;

  • With memory function, charge at last time current;

  • OLED display

  • Pure cooper cable, apply with IEC60

  • Cable length: 5 meters long or make as reqeusted



Protection function:

  • Leakage protection

  • Over-voltage protection

  • Over-current protection

  • Over-temperature protection

  • Anti water; anti dust

  • Voltage withstand protection

  • Fire-proof

  • Over-load protection

  • Lightning protection

  • Grounding protection



Main Specification:

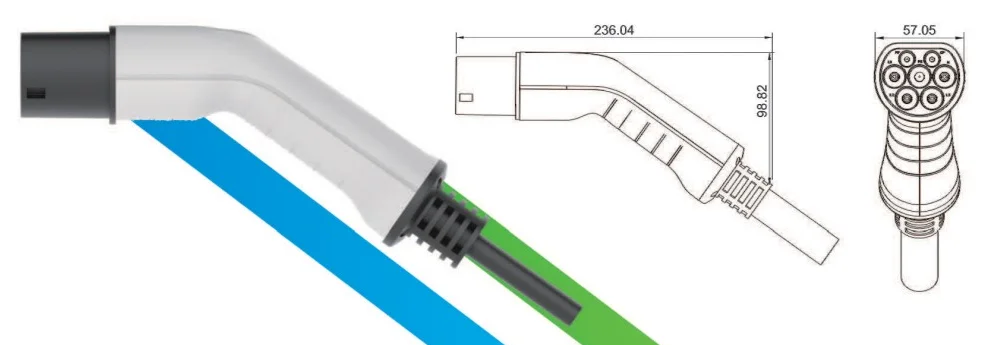

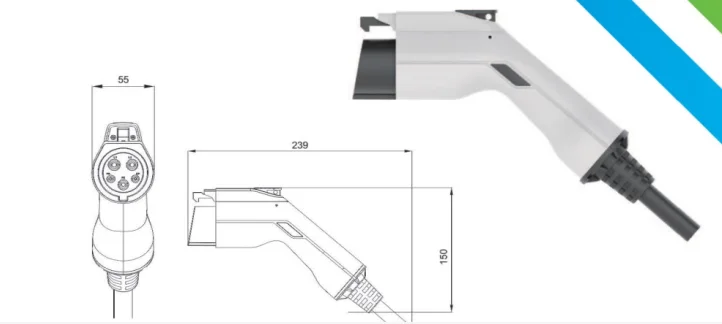

Type Type 1 or Type 2 optional
Rated current 16A /32A Adjustable
Insulation resisitance >1000M(DC500V)
Therminal temperature rise <50K
Withstand voltage 2000V
Mechanical life no-load plug in/pull out >10000 times
Impat of external force Can afford 1m drop and 2t vehicle run over pressure
Working voltage 100-240VAC
Shell material Thermoplastic, flame retardant grade
Operating temperature -30°C~+50°C
Color white plug



Type1



Type 2

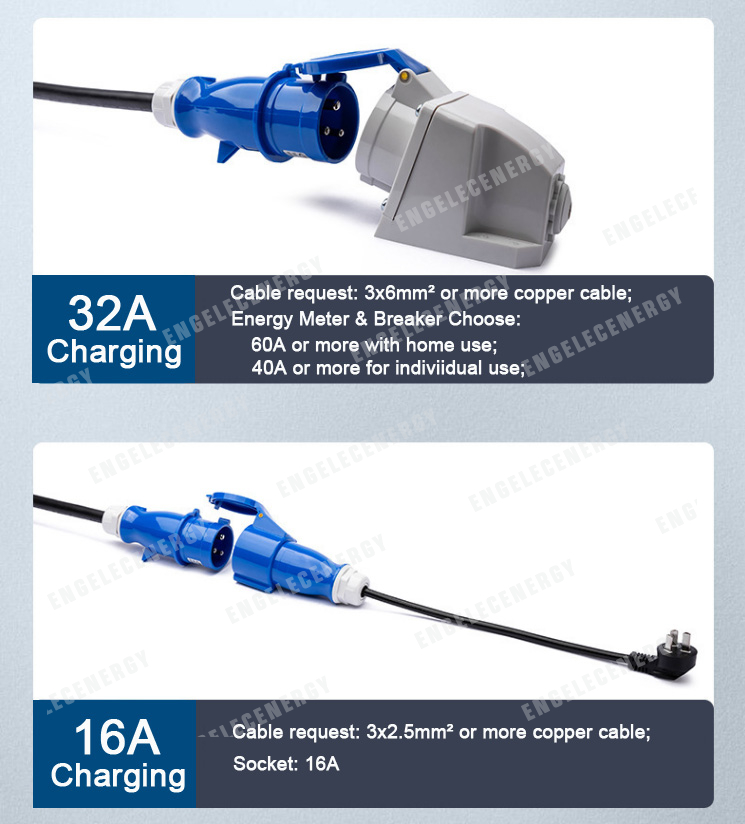

 32A

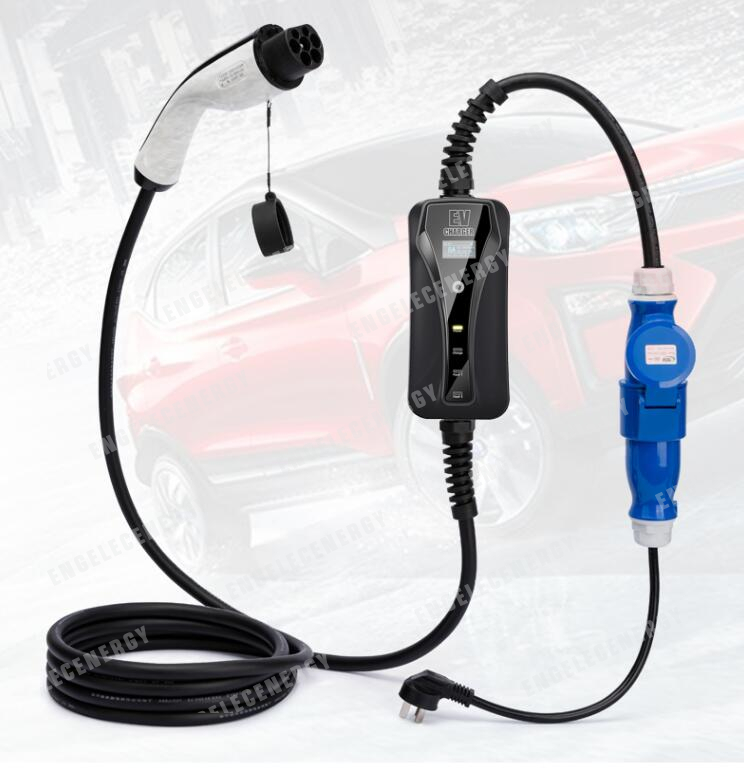

32A-2

32A-4

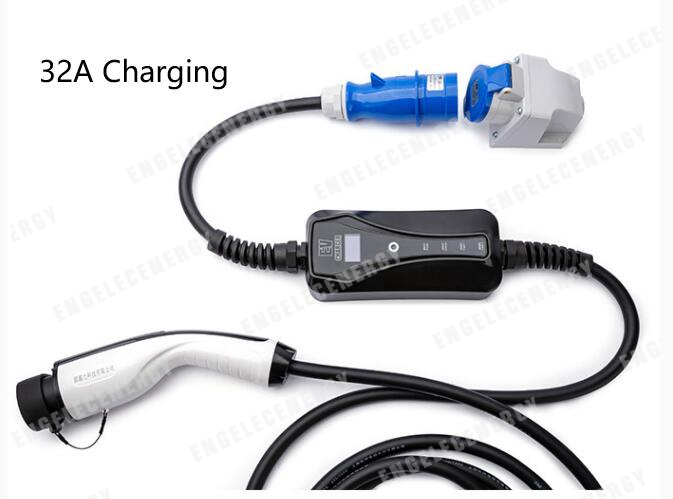

32A-3

32A-5
