EN-30KW-FD Horizontal Axis Wind Turbine 30000W

The EN-30KW-FD use permanent magnetic generator, has high-efficient energy output, is the most compact, quiet, rugged and reliable horizontal axis wind turbine. The EN-30KW-FD wind turbine is widely used in LED lighting system, road signal & camera security, telecommunication field for off-grid residence. The EN-30KW-FD wind turbine is extremely easy to integrate with solar panels to create off-grid power systems that require modest amounts of energy. Available in 480V for battery charging applications.
  • EN-30KW-FD
  • ENGELEC
  • EN-30KW-FD
  • EN-30KW-FD.pdf

EN-30KW-FD Horizontal Axis Wind Turbine 30000W


Product Description

Overview

  • Special-shaped magnet and unique winding structure, low starting wind speed, can be started at 3 m/s without any auxiliary starting device

  • Reinforced glass fiber blades and reasonable pneumatic appearance, so that the whole machine runs with low noise.

  • Using rare earth permanent magnet to reduce the volume and weight of the whole machine.

  • Extremely high power efficiency, almost 1.5 times of rated power.

  • Moulded whol machine, ensured the consistent quality of the products

  • With over-voltage, over-discharge, over-current, automaticaly protection at strong wind.

  • Stainless steel case with corrosion resistance performance.

  • Strictly sealed, sand, salt spray, rainwater can't invade the inside of the motor

  • Unique heat dissipation structure to ensure the design life of the machine is 15-20 years.



Application

  • The EN-30KW-FD wind turbine is widely used in LED light, street signal & camera security, outdoor telecommunication system and off-grid residence.

  • The EN-30KW-FD wind turbine is extremely easy to integrate with solar panels to consist a wind & solar hybrid off-grid power systems for consistent and

    clean energy. Available in 480V for battery charging.


Advantage

  • Low starting wind speed, compact, light, beautiful and with little vibration.

  • Easy installation

  • Blades color can be customized to country flag, company logo and etc.

  • Permanent magnetic with special stator, effectively reduce torque to be only 1/3 of ordinary generator for more excellent performance.

Specification sheet

Type EN-1KW-FD EN-2KW-FD EN-3KW-FD EN-5KW-FD EN-10KW-FD EN-20KW-FD EN-30KW-FD
Rated power 1000W 2000W 3000W 5000W 10KW 20KW 30KW
Max power(w) 1500W 3000W 4500W 7500W 17KW 30KW 45KW
Wind rotor   diameter(m) 2.8 3 4 6 7 10 12
Start-up wind   speed(m/s) 3 3 3 3 3 3 3
Rated wind   speed(m/s) 9 9 10 10 10 10 10
Working wind   speed(m/s) 3.0-20 3.0-20 3.0-25 3.0-25 3.0-30 3.0-30 3.0-30
Survived wind   speed(m/s) 40 40 40 40 45 45 45
Start   torque(n/m) 1.5 2 3 4.5 7.5 7.5 10
Rated rotate   speed(rpm) 400 380 300 260 180 150 150
Woking   voltage(v) 24V, 48V 48V, 96V, 120V 48V, 96V, 120V 48V, 96V, 120V, 240V 96V, 120V, 240V 240V, 480V 480V
Wind turbine   main bodyweigt(kg) 40 68 140 360 622 1150 1500
Blade quantity 3pcs
Blade material  FRP Reinforced
Generator type Three phase AC permanent magnet generator
Speed   regulation method Electromagnetic brake+yawing
Stop method Electromagnetic brake+manual

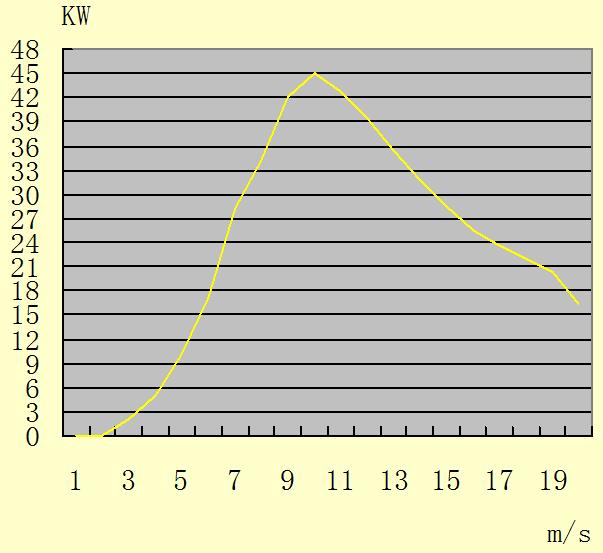

EN-30KW-FD Wind turbine Power Curve Test

FD 30KW  风洞测试小

Packaging & Delivery

We as the most professional supplier and manufacturer of wind turbines, we can accept one piece & instant delivery to any place in the world.

Our clients can choose the delivery service

  • by expresss

  • by air

  • by sea

  • by truck.

wind turbine delivery



Certificates
CE certification
Project

1-10KW

晟成风机3

FAQ

Q1:  Is the wind turbine easy to install ? What about the installation condition?

A:  Our small wind turbine is very convenient and easy to install. It is fixed by the flange and bolts to the base. we will offer the installation manual with the goods together, you can finish installtion within 3 minutes by following the manual.

     When installation, you'd better choose the flat and open area. We recommend the installation height should be at least 6m above ground, because higher area has stronger wind and steadier airflow.  If installed on the roof top, it's better has 5m space to the obstacles. The trees and buildings can block airflow. The obstacles create a slow and turbulent airflow area in front of and behind them, where it should be avoided to install the wind turbine.

Q2: What's the materials of the wind turbines?What's your advantage ?

A:  We use aluminum alloy material for the generator shell and blades, compared with other cast iron products, our products are light in weight, good in balance, and the power output is more stable. Our turbine blades design has the best fatigue strength and mechanical properties, can withstand the extremely severe conditions of storms and random loads. The turbine surface is smooth to reduce wind drag, the surface coating will resistant to corrosion and strong sunlight.


Q3: Which type is the generator?What's your advantage ?

A:  Our wind turbines uses a three-phase permanent magnet synchronous generator.  Its advantages is simple structure, small volume, light weight, small loss, high efficiency and high power factor. It is mainly used for high performance servo drive systems and DC generator replacement where require a quick and precise correspond and wide speed range.


Q4: How to maintain the wind turbines for extending their service life ?

A:  1. Check the stay wires of the supporting pole, if it is loose, you should tighten it in time. Multiple checkings should be repeated during the first months after installation. The stay wires should also be checked after very strong wind.

2. Check and secure that the connection point in the electrcity circuit are secured well.

3. Regular checking and maintenance for the batteries.

4. Fix the supporting pole more firmly or put down it before severe weather coming such as hurricanes.
