EN-20KW-E
ENGELEC
EN-20KW-E
EN-20KW-E Horizontal Axis Wind Turbine 20000W
Overview.
The EN-20KW-E uses the special designed PM generator with low loss, best magnetic flux density. The special stator design reduced the torque dramatically and it help the generator start working at a low cut-in wind speed.
The EN-20KW-E use the reinforced fiberglass blades with optimized aerodynamic structural design, it help the turbine increase the working efficiency and wind energy utilization.
The rudder adopts automatic yaw design, it makes the turbines automatically and accurately align with the windward direction.
This design can increase output power and the ability of resisting terrible weather.
The EN-20KW-E can withstand winds up to 45m/s by a passive aero-dynamic design. Entirely moulded wind turbine body ensures the consistent quality and reducing the vibration and noise.
Adopting intelligent tracking technology of power generating, effectively regulating current and voltage, and high conversion rate, over load protection of power generation
Application
The EN-20KW-E use permanent magnetic generator, has high-efficient energy output, is the most compact, safe and reliable horizontal axis wind turbine.
The EN-20KW-E wind turbine is widely used in garden, park, farm, island and open areas. It can supply stable & sufficient electricity for the private consuming or selling to electricity grid.
The EN-20KW-E wind turbine is also easy to integrate with solar panels to create hybrid generating systems
Advantage
Low starting wind speed, compact, light, beautiful and with little vibration.
Easy installation
Permanent magnetic with special stator, effectively reduce torque to be only 1/3 of ordinary generator for more excellent performance.
Unique heat dissipation structure to ensure the design life of the machine is 15-20 years
Specification sheet
| Model | EN-10KW-E | EN-20KW-E | EN-30KW-E | EN-50KW-E | EN-100KW-E |
| Rated power | 10KW | 20KW | 30KW | 50KW | 100KW |
| Max power | 12KW | 23KW | 33W | 55KW | 110KW |
| Nominal voltage | 120/220V | 220/360V | 360V | 360V | 360V |
| Start-up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s |
| Rated wind speed | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s |
| Survival wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s |
| Wind wheel diameter | 7.8m | 10m | 12m | 18m | 22m |
| Number of blades | 3pcs | ||||
| Blades material | Reinforced glass fiber | ||||
| Generator | Three phase ac permanent magnet AC generator | ||||
| Controller system | Electronically controlled yaw protection | ||||
| Speed regulation | Electronically controlled yaw | ||||
| Working temperature | -40℃～80℃ | ||||
| Lubrication | Grease injection | ||||

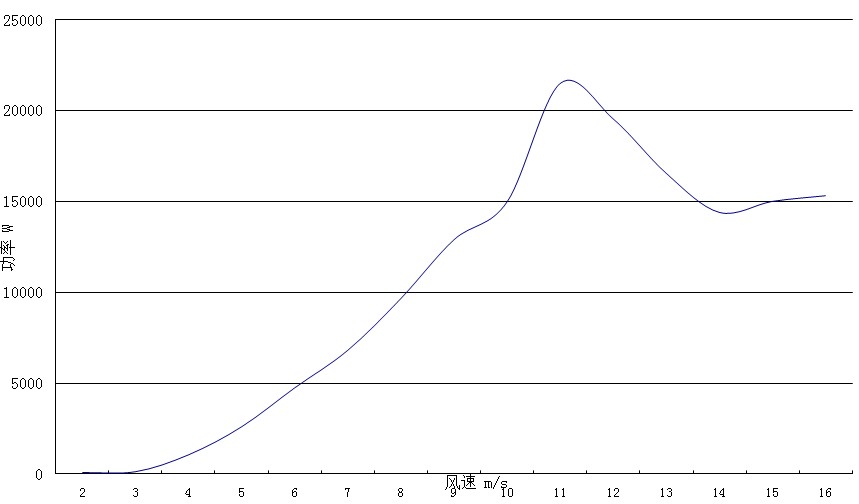

EN-20KW-E Wind turbine Power Curve Test
We as the most professional supplier and manufacturer of wind turbines, we can accept one piece & instant delivery to any place in the world.
Our clients can choose the delivery service
by expresss
by air
by sea
by truck.
Off grid connection
A: Our small wind turbine is very convenient and easy to install. It is fixed by the flange and bolts to the base. we will offer the installation manual with the goods together, you can finish installtion within 3 minutes by following the manual.
When installation, you'd better choose the flat and open area. We recommend the installation height should be at least 6m above ground, because higher area has stronger wind and steadier airflow. If installed on the roof top, it's better has 5m space to the obstacles. The trees and buildings can block airflow. The obstacles create a slow and turbulent airflow area in front of and behind them, where it should be avoided to install the wind turbine.
A: We use aluminum alloy material for the generator shell and blades, compared with other cast iron products, our products are light in weight, good in balance, and the power output is more stable. Our turbine blades design has the best fatigue strength and mechanical properties, can withstand the extremely severe conditions of storms and random loads. The turbine surface is smooth to reduce wind drag, the surface coating will resistant to corrosion and strong sunlight.
A: Our wind turbines uses a three-phase permanent magnet synchronous generator. Its advantages is simple structure, small volume, light weight, small loss, high efficiency and high power factor. It is mainly used for high performance servo drive systems and DC generator replacement where require a quick and precise correspond and wide speed range.
A: 1. Check the stay wires of the supporting pole, if it is loose, you should tighten it in time. Multiple checkings should be repeated during the first months after installation. The stay wires should also be checked after very strong wind.
2. Check and secure that the connection point in the electrcity circuit are secured well.
3. Regular checking and maintenance for the batteries.
4. Fix the supporting pole more firmly or put down it before severe weather coming such as hurricanes.
