EN-2000W-L Horizontal Axis Wind Turbine 2000W

The EN-2KW-L use permanent magnetic generator, has high-efficient energy output, is the most compact, safe and reliable horizontal axis wind turbine. The EN-2KW-L wind turbine is widely used in garden, park, farm, island and open areas. It can supply stable & sufficient electricity for the private consuming or selling to electricity grid. The EN-2KW-L wind turbine is also easy to integrate with solar panels to create hybrid generating systems
  • EN-2000W-L

  • ENGELEC

  • EN-2000W-L

  • EN-2KW-L.pdf

Availability:

EN-2000W-L Horizontal Axis Wind Turbine 2000W


Product Description

Overview.

  • The EN-2KW-L uses the special designed PM generator with low loss, best magnetic flux density. The special stator design reduced the torque dramatically and it help the generator start working at a low cut-in wind speed.

  • The EN-2KW-L use the reinforced fiberglass blades with optimized aerodynamic structural design, it help the turbine increase the working efficiency and wind energy utilization.

  • The rudder adopts automatic yaw design, it makes the turbines automatically and accurately align with the windward direction.

  • This design can increase output power and the ability of resisting terrible weather.

  • The EN-2KW-L can withstand winds up to 45m/s by a passive aero-dynamic design. Entirely moulded wind turbine body ensures the consistent quality and reducing the vibration and noise.

  • Adopting intelligent tracking technology of power generating, effectively regulating current and voltage, and high conversion rate, over load protection of power generation


Application

  • The EN-2KW-L use permanent magnetic generator, has high-efficient energy output, is the most compact, safe and reliable horizontal axis wind turbine.

  • The EN-2KW-L wind turbine is widely used in garden, park, farm, island and open areas. It can supply stable & sufficient electricity for the private consuming or selling to electricity grid.

  • The EN-2KW-L wind turbine is also easy to integrate with solar panels to create hybrid generating systems


Advantage

  • Low starting wind speed, compact, light, beautiful and with little vibration.

  • Easy installation

  • Permanent magnetic with special stator, effectively reduce torque to be only 1/3 of ordinary generator for more excellent performance.

  • Unique heat dissipation structure to ensure the design life of the machine is 15-20 years


Specification sheet

Model  EN-1000W-L  EN-1500W-L  EN-2000W-L  EN-2500W-L
Rated power 1000W 1500W 2000W 2500W
Max power 1200W 1700W 2300W 2800W
Nominal voltage 48V 48V 48V/96V 48V/96V
Start-up wind speed 2.5m/s 2.5m/s 2.5m/s 2.5m/s
Rated wind speed 11m/s 11m/s 11m/s 11m/s
Survival wind speed 45m/s 45m/s 45m/s 45m/s
Top net weight 45kg 50kg 55kg 60kg
Wind wheel diameter 2.9m 3.2m 3.7m 3.7m
Number of blades 3pcs
Blades material Reinforced   glass fiber
Generator Three   phase ac permanent magnet generator
Controller system Electromagnetic/Wind   wheel yaw
Speed regulation The   wind Angle automatically
Working temperature -40℃~80℃

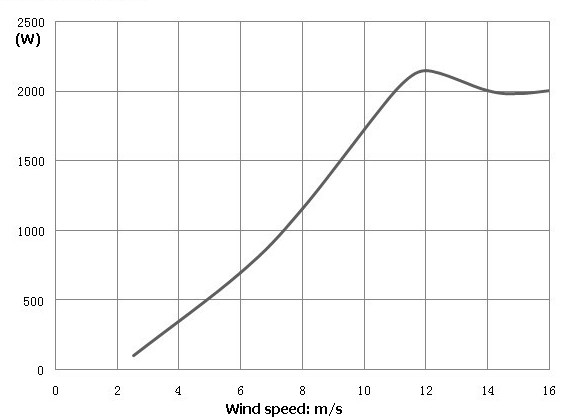

EN-2000W-L Wind turbine Power Curve Test

  EN-2KW-L power curve 风洞测试小

Packaging & Delivery

We as the most professional supplier and manufacturer of wind turbines, we can accept one piece & instant delivery to any place in the world.

Our clients can choose the delivery service

  • by expresss

  • by air

  • by sea

  • by truck.

wind turbine delivery



Certificates
CE certification
Project

10kw详情

Off grid connection

connection

FAQ

Q1:  Is the wind turbine easy to install ? What about the installation condition?

A:  Our small wind turbine is very convenient and easy to install. It is fixed by the flange and bolts to the base. we will offer the installation manual with the goods together, you can finish installtion within 3 minutes by following the manual.

     When installation, you'd better choose the flat and open area. We recommend the installation height should be at least 6m above ground, because higher area has stronger wind and steadier airflow.  If installed on the roof top, it's better has 5m space to the obstacles. The trees and buildings can block airflow. The obstacles create a slow and turbulent airflow area in front of and behind them, where it should be avoided to install the wind turbine.

Q2: What's the materials of the wind turbines?What's your advantage ?

A:  We use aluminum alloy material for the generator shell and blades, compared with other cast iron products, our products are light in weight, good in balance, and the power output is more stable. Our turbine blades design has the best fatigue strength and mechanical properties, can withstand the extremely severe conditions of storms and random loads. The turbine surface is smooth to reduce wind drag, the surface coating will resistant to corrosion and strong sunlight.


Q3: Which type is the generator?What's your advantage ?

A:  Our wind turbines uses a three-phase permanent magnet synchronous generator.  Its advantages is simple structure, small volume, light weight, small loss, high efficiency and high power factor. It is mainly used for high performance servo drive systems and DC generator replacement where require a quick and precise correspond and wide speed range.


Q4: How to maintain the wind turbines for extending their service life ?

A:  1. Check the stay wires of the supporting pole, if it is loose, you should tighten it in time. Multiple checkings should be repeated during the first months after installation. The stay wires should also be checked after very strong wind.

2. Check and secure that the connection point in the electrcity circuit are secured well.

3. Regular checking and maintenance for the batteries.

4. Fix the supporting pole more firmly or put down it before severe weather coming such as hurricanes.
