EEHE 600W 24V
ENGELEC
EEHE Series 600W24V Wind/solar Hybrid Controller
Applications
This kind of wind solar hybrid streetlight controller is special design for small off-grid wind solar hybrid generation system. Appearance is elegant, operations are easy. It also makes the course of which wind generator and solar panels charge to batteries safely and efficiently.
Features
Ø Apply for independent wind &solar hybrid system, lighting system and monitoring system.
Ø Intelligent design, simple structure, powerful control function, stable performance, product safety and reliability.
Ø PWM dump load of wind.
Ø Intelligent disconnection of Solar charging.
Ø Dual power supply function: Battery + solar power supply.
Ø LCD displays parameters such as voltage and current of wind, solar and load .
Ø Two DC output, with 4 output modes.
Ø Digital intelligent control.
Ø Protection.
Technical Parameters
| Model | EEHE6024 | |
| Rated system voltage | 24V | |
| Rated wind power | 600W | |
| Rated solar power | 400W | |
| Battery charging protection | Over charge | 29.4V±1% |
| - BF (adjustable) | ||
| Battery under voltage protection | Load disconnect | 20.4V±1% |
| - BL (adjustable) | ||
| Recovery (DC) | 22.4V±1% | |
| Load over voltage protection | Load disconnect (DC) | 35.0V±1% |
| Recovery (DC) | 30.0V±1% | |
| No-load Current (DC) | ≤0.05A | |
| Control mode | wind generator PWM Charging Function, PWM Unloading Function and PWM Over current Limiting Function | |
| Output working mode(Mode) | Mode 1: Light-control on. Light-control off (4 modes adjustable) | |
| Display content | LCD display | |
| Voltage, Percentage of battery power, Current, working mode of load, etc | ||
| Protection type | Solar Reversed Charging protection, battery open circuit protection, battery anti-reverse connection protection, over current and over voltage auto brake protection, over load protection,etc. | |
| Cooling mode | Aluminum profiles Heat dissipation and self-cooling | |
| Working temperature / Relative humidity | -25℃~+80℃ /0~90%，non-condensing | |
| Net weight / Gross weight | 1.0 KG/1.25KG | |
| Controller size / Packing size | 162*140*66mm/220*185*140mm | |

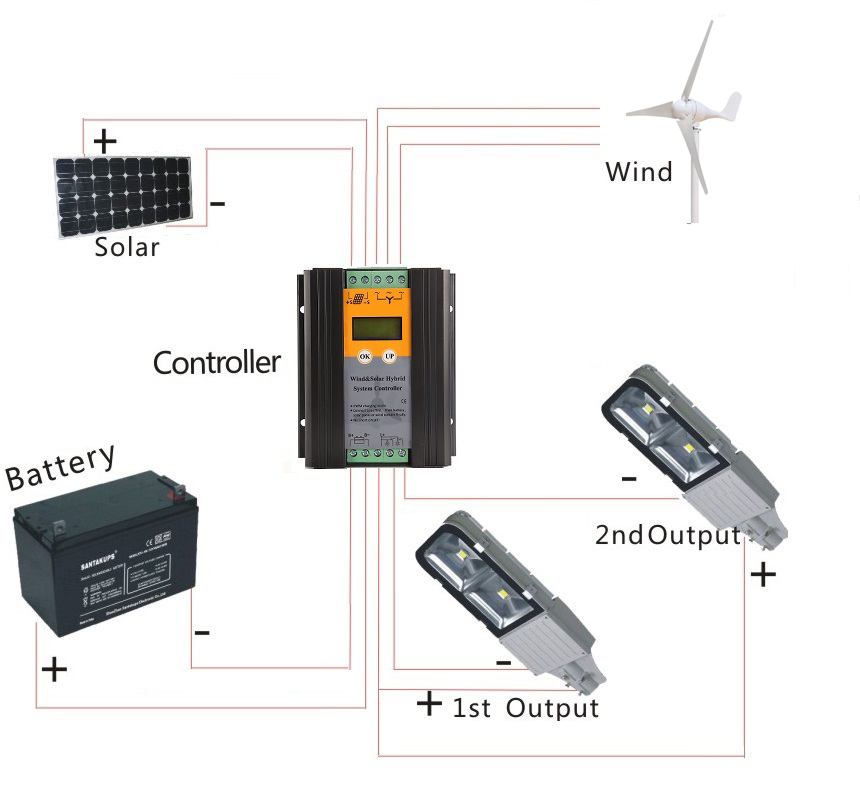

Connection
EEHE Series 600W24V Wind/solar Hybrid Controller
Applications
This kind of wind solar hybrid streetlight controller is special design for small off-grid wind solar hybrid generation system. Appearance is elegant, operations are easy. It also makes the course of which wind generator and solar panels charge to batteries safely and efficiently.
Features
Ø Apply for independent wind &solar hybrid system, lighting system and monitoring system.
Ø Intelligent design, simple structure, powerful control function, stable performance, product safety and reliability.
Ø PWM dump load of wind.
Ø Intelligent disconnection of Solar charging.
Ø Dual power supply function: Battery + solar power supply.
Ø LCD displays parameters such as voltage and current of wind, solar and load .
Ø Two DC output, with 4 output modes.
Ø Digital intelligent control.
Ø Protection.
Technical Parameters
| Model | EEHE6024 | |
| Rated system voltage | 24V | |
| Rated wind power | 600W | |
| Rated solar power | 400W | |
| Battery charging protection | Over charge | 29.4V±1% |
| - BF (adjustable) | ||
| Battery under voltage protection | Load disconnect | 20.4V±1% |
| - BL (adjustable) | ||
| Recovery (DC) | 22.4V±1% | |
| Load over voltage protection | Load disconnect (DC) | 35.0V±1% |
| Recovery (DC) | 30.0V±1% | |
| No-load Current (DC) | ≤0.05A | |
| Control mode | wind generator PWM Charging Function, PWM Unloading Function and PWM Over current Limiting Function | |
| Output working mode(Mode) | Mode 1: Light-control on. Light-control off (4 modes adjustable) | |
| Display content | LCD display | |
| Voltage, Percentage of battery power, Current, working mode of load, etc | ||
| Protection type | Solar Reversed Charging protection, battery open circuit protection, battery anti-reverse connection protection, over current and over voltage auto brake protection, over load protection,etc. | |
| Cooling mode | Aluminum profiles Heat dissipation and self-cooling | |
| Working temperature / Relative humidity | -25℃~+80℃ /0~90%，non-condensing | |
| Net weight / Gross weight | 1.0 KG/1.25KG | |
| Controller size / Packing size | 162*140*66mm/220*185*140mm | |
Connection
