EEB1 100KW PWM Wind/Solar Hybrid Controller Off-grid

EEB1 100KW with two sets of control systems:PWM constant voltage system and three-phase dump load system. Big LCD shows real-time wind turbine voltage, current, power; solar panel voltage, current, power; battery group voltage, charge current.(The main board is with button battery, in case of power failure, history data can be saved for 30 days)

EEB1 100KW PWM Wind/Solar Hybrid Controller Off-grid


Off-grid Connection


Features


     ◆ The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users’ technical requirements.

     ◆ Big LCD display. The images tell working state visually. Various data show: real-time wind turbine voltage, current, power; solar panel voltage, current, power; battery group voltage, charge current.(The main board is with button battery, in case of power failure, history data can be saved for 30 days)

     ◆ Two sets of control systems:PWM constant voltage system and three-phase dump load system.

     ◆ PWM constant voltage control is 120% of the rated power of the wind turbine. In case exceeding of PWM’s capacity, the three-phase dump load will automatically start immediately to ensure safe running of the overall wind turbine system.

     ◆ When the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.

     ◆ When the battery disconnect or damage, the three-phase dump load will start automatically to

  avoid the wind turbine idling and runaway accident.

     ◆ The protection function of battery: polarity reverse protection, disconnection and damage protection.

     ◆ Over-charging protection of the battery: When the battery is full (the battery voltage getting 125% of the rated voltage), the controller will carry out three-phase dump load automatically to stop charging the battery.

     ◆ Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage, it stops three-phase dump load to recharge battery automatically.

     ◆ The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.

     ◆ The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.


Technical Parameters

Type 100KW-420Vdc
Wind turbine rated power 100KW
Wind turbine max. power 200KW
*Solar panel power 30KWp
Battery 420Vdc
Function Rectifier,charge, control, *DC output
Automatic protection function Over voltage protection, constant voltage charge, arrester
Manual function Manual brake
Display mode LCD+LED
Display content Wind turbine voltage, current, power; battery voltage, charge current
PWM constant pressure voltage1 >507Vdc
PWM constant pressure voltage1 >507Vdc
Wind turbine 3-phase dump load 1 voltage 515±5Vdc
Wind turbine 3-phase dump load 2 voltage 520±5Vdc
Wind turbine 3-phase dump load 3 voltage 525±5Vdc
Wind turbine recharge voltage 475±5Vdc
*Solar control stop charging voltage 520±5Vdc
*Solar control recharge voltage 475±5Vdc
*Diesel generator starting voltage 350±5Vdc
*Diesel generator off voltage 475±5Vdc
Self-provided 3phase dump load connecting wire >32mm²
Self-provided battery connecting wire  >60mm²
PWM fuse 63A*2
*Solar fuse 80A
Charging fuse 315A
Work environment temperature -30-60°C
Relative humidity  <90% No condensation
Noise (1m) <40dB
Degree of protection IP20(Indoor)IP65 (Outdoors)
Cooling method Forced air cooling
* Extral Control function (optional) yawing, variable pitch, mechanical brake, hydraulic brake, electromagnetism brake
*Communication   interface (optional) RS485/USB/GPRS/WIFI/Ethernet
*Temperature compensation (optional) -4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C
Controller Size (mm)  Weight (kg)  600*500*1200        120Kg
Dump load Size (mm)  Weight (kg) 720*500*1300        110 Kg
720*500*1300        110 Kg



Project Sample

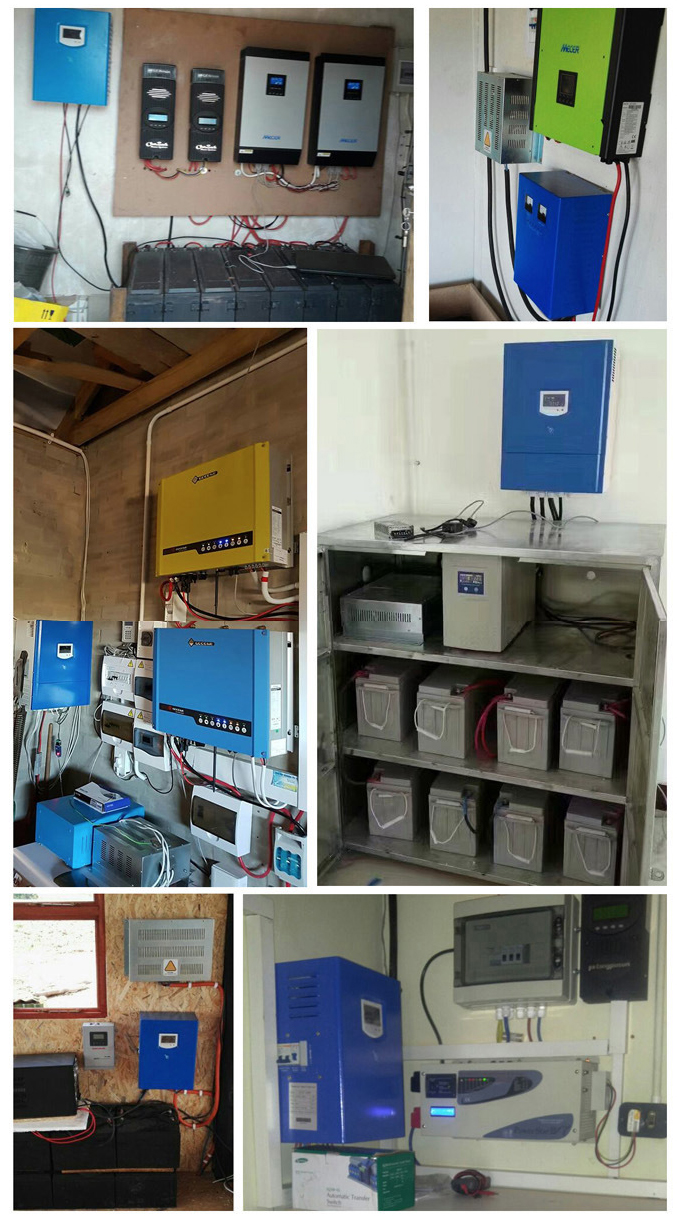

Installation
