EN-1KW-Q5
ENGELEC
EN-1KW-Q5
| Size: | |
|---|---|

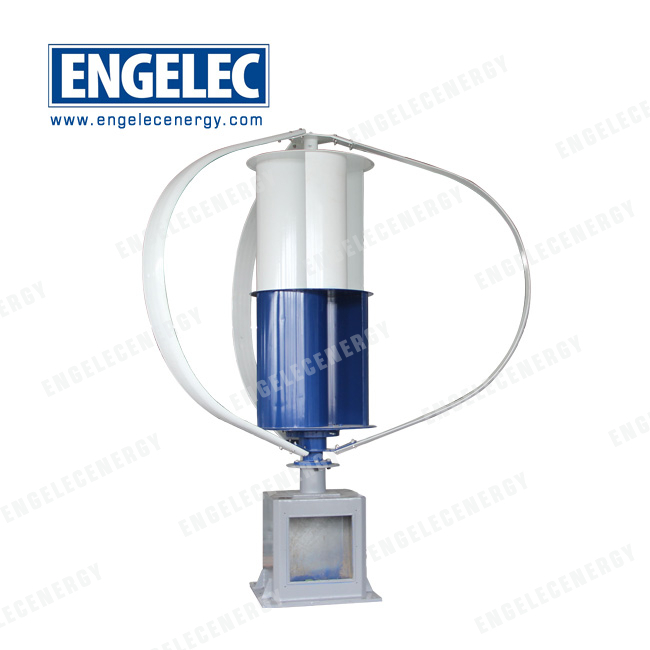

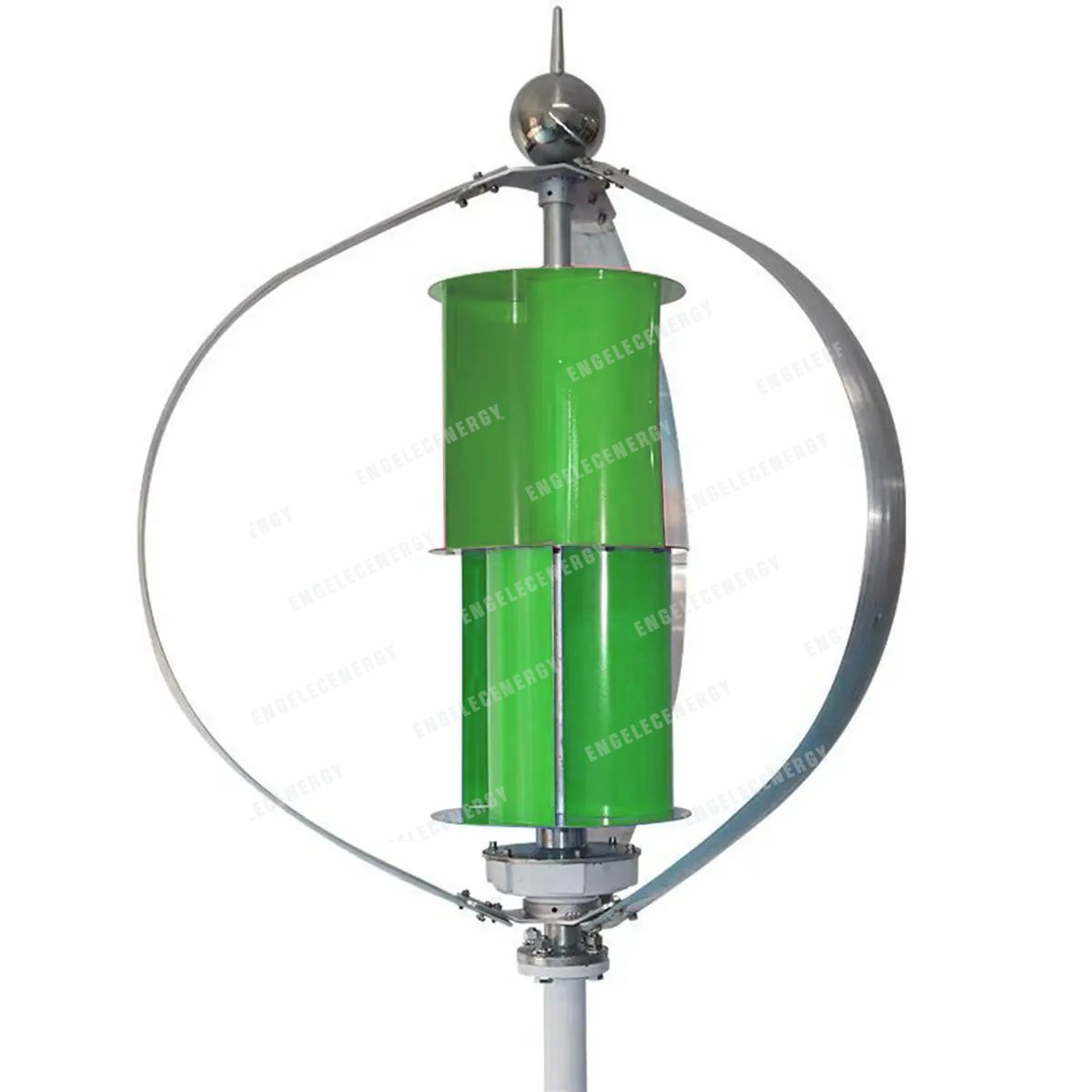

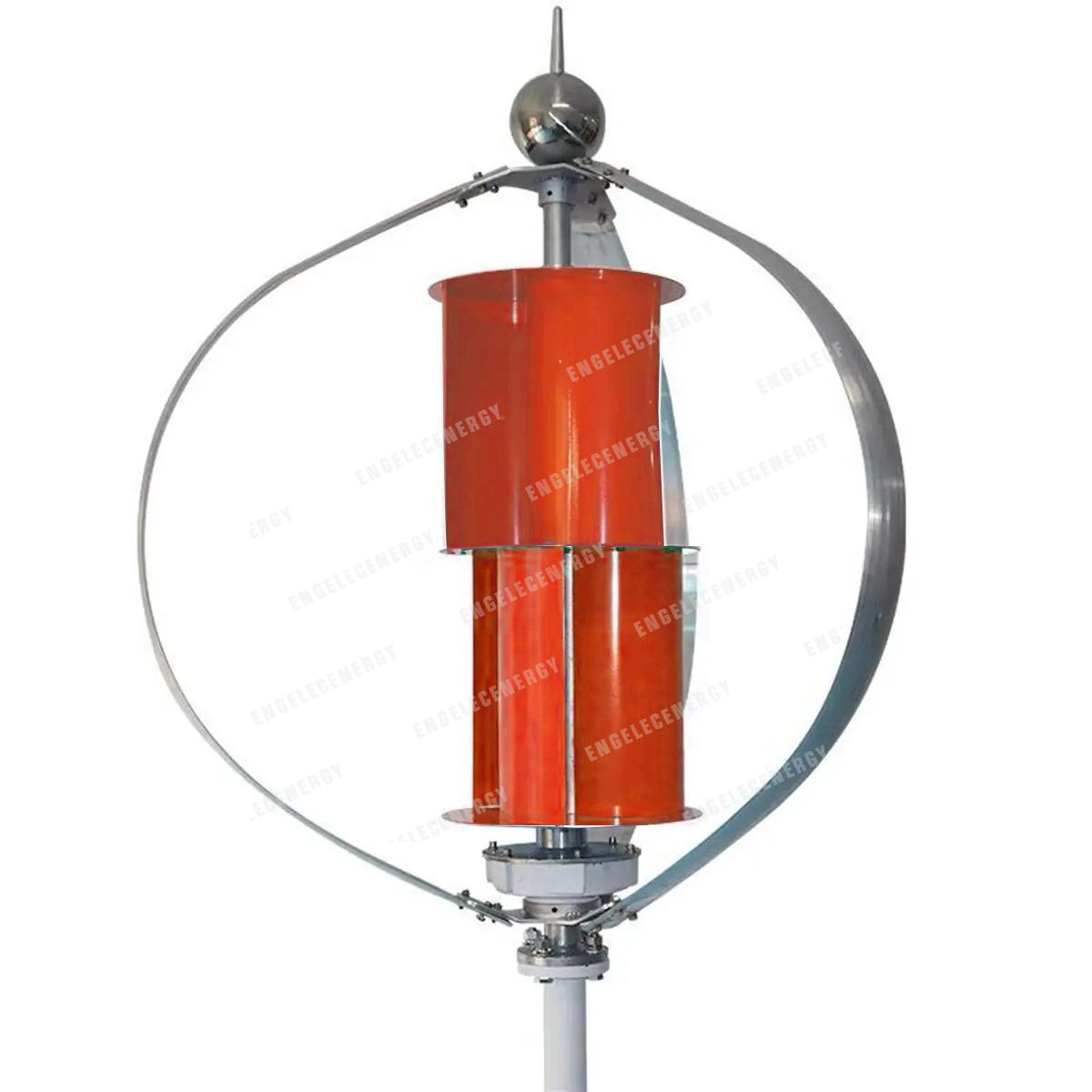

Vertical Axis Wind Turbine Generator VAWT EN-1KW-Q5
Overview
The EN-1KW-Q5 is designed on a unique low inertia axial flux generator which utilizes Neodymium permanent magnetic material.
The EN-1KW-Q5 has zero cogging with its highly efficient, allow the turbine to generate power at very low wind speeds and deliver a high output in working wind speeds.
The EN-1KW-Q5 can survive from winds up to 40m/s by a passive aero-dynamic design that reduces turbine RPM and power
output at a certain threshold.
Therobust aluminum alloy chassis and stainless steel components are protected by the aerospace grade coatings and anodizing.
Application
The EN-1KW-Q5 wind turbine is widely used in LED light, street signal & camera security, outdoor telecommunication system and off-grid residence.
The EN-1KW-Q5 wind turbine is extremely easy to integrate with solar panels to consist a wind & solar hybrid off-grid power systems for consistent and
clean energy. Available in 12V, 24V and 48V for battery charging.
Advantage
Low start up speed; high wind energy utilization; beautiful appearance; low vibration
Human friendly design, easy installation, maintenance and repair.
Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.
The generators, adopting patented permanent magnet rotor alternator，with a special kind of stator design, efficiently decrease resistance torque. Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.
Specification sheet
Model | EN-1KW-Q5 | EN-2KW-Q5 | EN-3KW-Q5 |
| Rated power | 1000W | 2000W | 3000W |
Maximum power | 1050W | 2100W | 3100W |
Output voltage | 48V | 96V/120V | 120V |
Start-up wind speed | 3m/s | 3m/s | 3m/s |
Rated wind speed | 12m/s | 13m/s | 13m/s |
Survival wind speed | 45m/s | 45m/s | 45m/s |
Turbine height | 1.85m | 2.4m | 3m |
Wheel dimeter | 2m | 2.5m | 2.8m |
Number of blades | 6 pcs | ||
Blades material | Casting aluminum alloy | ||
Generator type | Three phase permanent magnet ac synchronous generator/maglev generator | ||
Control system | Electromagnet | ||
Speed regulation | Automatically adjust windward direction | ||
Working temperature | -40℃～80℃ | ||
EN-1KW-Q5 Wind turbine Power Curve Test
We as the most professional supplier and manufacturer of wind turbines, we can accept one piece & instant delivery to any place in the world.
Our clients can choose the delivery service
by expresss
by air
by sea
by truck.
A: Our small wind turbine is very convenient and easy to install. It is fixed by the flange and bolts to the base. we will offer the installation manual with the goods together, you can finish installtion within 3 minutes by following the manual.
When installation, you'd better choose the flat and open area. We recommend the installation height should be at least 6m above ground, because higher area has stronger wind and steadier airflow. If installed on the roof top, it's better has 5m space to the obstacles. The trees and buildings can block airflow. The obstacles create a slow and turbulent airflow area in front of and behind them, where it should be avoided to install the wind turbine.
A: We use aluminum alloy material for the generator shell and blades, compared with other cast iron products, our products are light in weight, good in balance, and the power output is more stable. Our turbine blades design has the best fatigue strength and mechanical properties, can withstand the extremely severe conditions of storms and random loads. The turbine surface is smooth to reduce wind drag, the surface coating will resistant to corrosion and strong sunlight.
A: Our wind turbines uses a three-phase permanent magnet synchronous generator. Its advantages is simple structure, small volume, light weight, small loss, high efficiency and high power factor. It is mainly used for high performance servo drive systems and DC generator replacement where require a quick and precise correspond and wide speed range.
A: 1. Check the stay wires of the supporting pole, if it is loose, you should tighten it in time. Multiple checkings should be repeated during the first months after installation. The stay wires should also be checked after very strong wind.
2. Check and secure that the connection point in the electrcity circuit are secured well.
3. Regular checking and maintenance for the batteries.
4. Fix the supporting pole more firmly or put down it before severe weather coming such as hurricanes.
