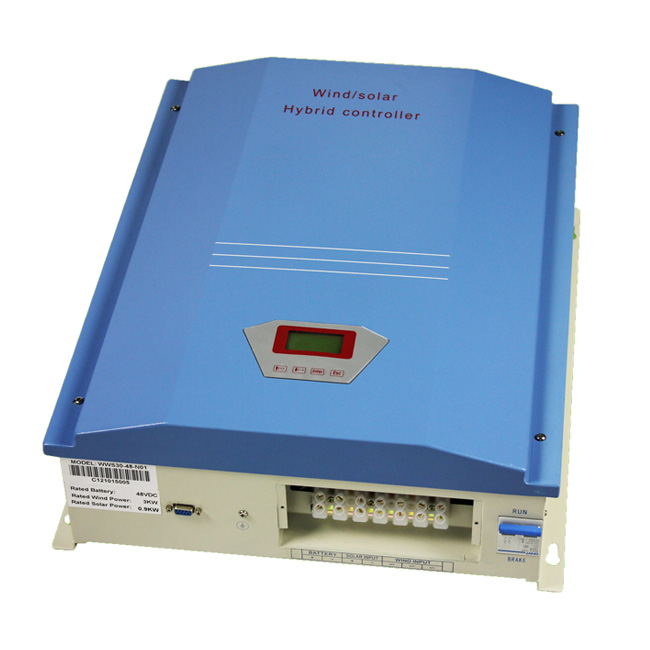

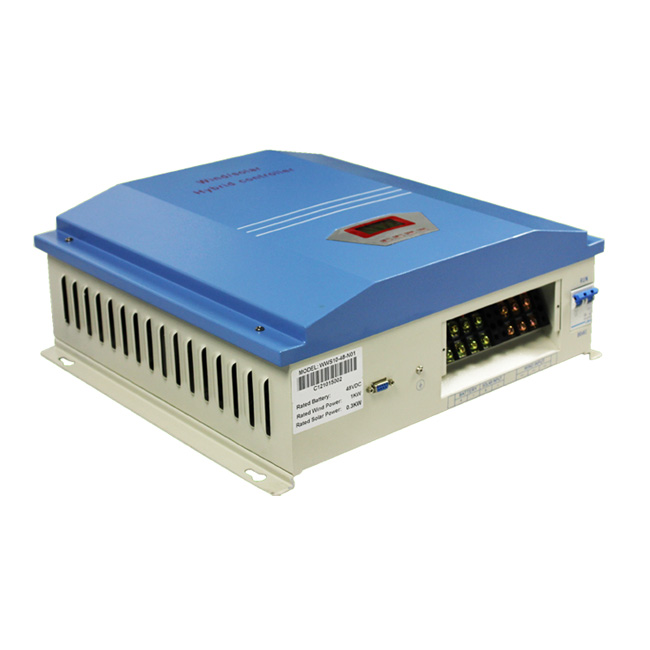

Wind/Solar Hybrid Controller with Dump Load 600W-20KW
The wind and solar hybrid controller is a set of intelligent controller of solar and wind control, designed for the high-end wind and solar hybrid system, especially suitable for wind and solar power system and monitoring system. At the same time, it charges of the battery effectively and intelligently by controlling wind turbine and solar panel.
The device has the advantages of simple appearance, convenient operation, direct liquid crystal indication, perfect protection function, high charging efficiency and low no-load loss, and the system is safe, stable, reliable and long service life.
The wind and solar hybrid controller is the core component of the off grid system. Its performance affects the whole system's life and operation stability, especially the service life of the battery.
Ø PWM Charging Mode: When the battery power is full, adopting the PWM control mode to control the charging, which can not only charge the battery effectively, but also prevent the battery from overcharging and prolonging the service life of the battery.
Ø Friendly human-machine interface: Display wind solar hybrid system state and parameter with intuitive figures and graphics, including: battery voltage, wind turbine voltage, PV voltage , wind turbine power, PV power, wind turbine current, PV current, state of charge of battery. You can check the display content by the LCD four button.
Ø Perfect protection function:Battery overcharge, over discharge, anti-reverse protection; wind turbine current limiting, brake automatically and brake manually protection; PV anti-charge, anti-reverse protection; lightning protection and so on.
Ø Remote Communication Function: Choose the standard RS232/RS485/RJ45/GPRS communication interface, the software can monitor real-time system running status, which contain all the parameters on the LCD screen. Through the software, users can not only set and adjust relevant parameters, but also can control the wind turbine and solar panel running status, and alarm while malfunction happens.
Ø The optional dry contact signal output function: According to the actual needs of the battery, the dry contact signal will output when the battery voltage reaches the set voltage.
Ø The optional temperature compensation function: According to the change of the ambient temperature, the charging control voltage can be adjusted to charge the battery effectively.
Ø The optional off-line storage module: In the remote areas without network coverage and the use of computer inconvenience, you can use the storage function of the off-line storage module to view the history of the system running data ( data recorded within a year).
Ø Optional MPPT Charging Function: Real-time monitoring of wind turbine voltage and tracking the maximum voltage and current value (VI), so that wind and solar hybrid system for charging the battery by maximum power.
Ø The optional touch screen display: 4.3 inch TET touch screen display, and set the relevant parameters by operating the touch screen.
General Specification(600W-20KW)
| Model | Rated input power | Rated battery voltage | Optional function | Equipment feature | DC output | ||||||
| WWS | Wind solar hybrid controller | 6 | 0.6 kW | 24 | 24V | N | Normal | 0 | Normal | D | dc |
| 10 | 1kW | 48 | 48V | L | Low Voltage Charge | 1 | RS232 | ||||
| 20 | 2kW | 96 | 96V | D | Buck Voltage Charge | 2 | RS485 | ||||
| 30 | 3kW | 120 | 120V | B | Economic | 4 | Solar Dumpload Separately | ||||
| 50 | 5kW | 220 | 220V | S | Micro-current Charge | 10 | Wind Turbine | ||||
| Single Phase DC | |||||||||||
| 100 | 10kW | 240 | 240V | 11 | RS232 | ||||||
| Wind Turbine | |||||||||||
| Single Phase DC, | |||||||||||
| RS232 | |||||||||||
| 200 | 20kW | 12 | RS485 | ||||||||
| Wind Turbine | |||||||||||
| Single Phase DC, | |||||||||||
| RS232 | |||||||||||
| XX | Other | ||||||||||
600W, 1000W
| Model | WWS06-48-B00 | WWS10-24 | WWS10-48 |
| Rated Battery Voltage | 48V | 24V | 48V |
| Rated Wind Turbine Input Power | 600W | 1kW | 1kW |
| Maximum Wind Turbine Input Power | 900W | 1.5kW | 1.5kW |
| Wind turbine brake current | 13A | 42A | 21A |
| Rated solar Input Power | 300W | 0.3W | 0.3W |
| Charge Shutoff Voltage | 58V | 29V | 58V |
| Display mode | LCD | ||
| Cool mode | aluminium alooly shell radiating | Fan | |
| Protection grade | IP 53(indoor) | IP 20(indoor) | |
| Quiescent current | Less than 20mA | ||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||
| Manual brake | wind generator stop turning or slowing turning | ||
| Lightning protection | Lightning protection in inside of the controller. | ||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||
| System parameters | |||
| Ambient Temperature & Humidity Range | -20～+55℃/0-93%RH（No Condensation） | ||
| Altitude | less than 4000m | ||
| Dimensions (L x W x H) | 205*150*82mm | Controller:440×300×170mm; Dumpload box：410×270×175mm | Controller:440×300×170mm; Dumpload box：300×190×1120mm |
| Net Weight | 2.2kg | Controller ：7.5kg; Dump load box：7kg | Controller ：7.5kg; Dump load box：3.5kg |
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||
2KW
| Model | WWS20-48 | WWS20-96 | WWS20-110 | WWS20-120 | WWS20-220 |
| Rated Battery Voltage | 48V | 96V | 110V | 120V | 220V |
| Rated Wind Turbine Input Power | 2KW | 2KW | 2KW | 2KW | 2KW |
| Maximum Wind Turbine Input Power | 3KW | 3KW | 3KW | 3KW | 3KW |
| Wind turbine brake current | 42A | 21A | 19A | 17A | 10A |
| Rated solar Input Power | 600W | 600W | 600W | 600W | 600W |
| Charge Shutoff Voltage | 58V | 116V | 113V | 145V | 266V |
| Dimension (LxWxH) | 442*425*172mm | ||||
| Net Weight | 11.5kg | ||||
| Display mode | LCD | ||||
| Cool mode | Fan | ||||
| Quiescent current | Less than 20mA | ||||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||||
| Manual brake | wind generator stop turning or slowing turning | ||||
| Lightning protection | Lightning protection in inside of the controller. | ||||
| Protection grade | IP20 (Indoor) | ||||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||||
| System parameters | |||||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||||
| Altitude | less than 4000m | ||||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：410×430×175mm | ||||
| Net Weight | Controller ：8 kg; Dump load box：13 kg | ||||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||||
3KW
| Model | WWS30-48 | WWS30-96 | WWS30-110 | WWS30-120 | WWS30-240 |
| Rated Battery Voltage | 48V | 96V | 110V | 120V | 240V |
| Rated Wind Turbine Input Power | 3kW | 3kW | 3kW | 3kW | 3kW |
| Maximum Wind Turbine Input Power | 4.5kW | 4.5kW | 4.5kW | 4.5kW | 4.5kW |
| Wind turbine brake current | 63A | 32A | 28A | 25A | 13A |
| Rated solar Input Power | 900W | 900W | 900W | 900W | 900W |
| Charge Shutoff Voltage | 58V | 116V | 113V | 145V | 290V |
| Display mode | LCD | ||||
| Cool mode | Fan | ||||
| Quiescent current | Less than 20mA | ||||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||||
| Manual brake | wind generator stop turning or slowing turning | ||||
| Lightning protection | Lightning protection in inside of the controller. | ||||
| Protection grade | IP20 (Indoor) | ||||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||||
| System parameters | |||||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||||
| Altitude | less than 4000m | ||||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：540×430×175mm | ||||
| Net Weight | Controller ：7.5 kg; Dump load box：17 kg | ||||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||||
5KW
| Model | WWS50-48 | WWS50-96 | WWS50-120 | WWS50-220 | WWS50-240 |
| Rated Battery Voltage | 48V | 96V | 120V | 220V | 240V |
| Rated Wind Turbine Input Power | 5KW | 5KW | 5KW | 5KW | 5KW |
| Maximum Wind Turbine Input Power | 7.5KW | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| Wind turbine brake current | 105A | 52A | 42A | 23A | 21A |
| Rated solar Input Power | 1500W | 1500W | 1500W | 1500W | 1500W |
| Charge Shutoff Voltage | 58V | 116V | 145V | 266V | 290V |
| Display mode | LCD | ||||
| Cool mode | Fan | ||||
| Quiescent current | Less than 20mA | ||||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||||
| Manual brake | wind generator stop turning or slowing turning | ||||
| Lightning protection | Lightning protection in inside of the controller. | ||||
| Protection grade | IP20 (Indoor) | ||||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||||
| System parameters | |||||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||||
| Altitude | less than 4000m | ||||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：410×430×175mm | ||||
| Net Weight | Controller ：8 kg; Dump load box：13 kg | ||||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||||
10KW
| Model | WWS100-120 | WWS100-220 | WWS100-240 |
| Rated Battery Voltage | 120V | 220V | 220V |
| Rated Wind Turbine Input Power | 10KW | 10KW | 10KW |
| Maximum Wind Turbine Input Power | 15KW | 15KW | 15KW |
| Wind turbine brake current | 84A | 46A | 42A |
| Rated solar Input Power | 3KW | 3KW | 3KW |
| Charge Shutoff Voltage | 145V | 266V | 290V |
| Display mode | LCD | ||
| Cool mode | Fan | ||
| Quiescent current | Less than 20mA | ||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||
| Manual brake | wind generator stop turning or slowing turning | ||
| Lightning protection | Lightning protection in inside of the controller. | ||
| Protection grade | IP20 (Indoor) | ||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||
| System parameters | |||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||
| Altitude | less than 4000m | ||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：520×430×675mm | ||
| Net Weight | Controller ：9 kg; Dump load box：45kg | ||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||
20KW
| Model | WWS200-120 | WWS200-220 |
| Rated Battery Voltage | 220V | 240V |
| Rated Wind Turbine Input Power | 20KW | 20KW |
| Maximum Wind Turbine Input Power | 30KW | 30KW |
| Wind turbine brake current | 91 | 84A |
| Rated solar Input Power | 6KW | 6KW |
| Charge Shutoff Voltage | 266V | 290V |
| Display mode | LCD | |
| Cool mode | Fan | |
| Quiescent current | Less than 20mA | |
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | |
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | |
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | |
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | |
| Manual brake | wind generator stop turning or slowing turning | |
| Lightning protection | Lightning protection in inside of the controller. | |
| Protection grade | IP20 (Indoor) | |
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | |
| System parameters | ||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | |
| Altitude | less than 4000m | |
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：680*420*675mm | |
| Net Weight | Controller ：10 kg; Dump load box：75kg | |
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | ||
Wind/Solar Hybrid Controller with Dump Load 600W-20KW
The wind and solar hybrid controller is a set of intelligent controller of solar and wind control, designed for the high-end wind and solar hybrid system, especially suitable for wind and solar power system and monitoring system. At the same time, it charges of the battery effectively and intelligently by controlling wind turbine and solar panel.
The device has the advantages of simple appearance, convenient operation, direct liquid crystal indication, perfect protection function, high charging efficiency and low no-load loss, and the system is safe, stable, reliable and long service life.
The wind and solar hybrid controller is the core component of the off grid system. Its performance affects the whole system's life and operation stability, especially the service life of the battery.
Ø PWM Charging Mode: When the battery power is full, adopting the PWM control mode to control the charging, which can not only charge the battery effectively, but also prevent the battery from overcharging and prolonging the service life of the battery.
Ø Friendly human-machine interface: Display wind solar hybrid system state and parameter with intuitive figures and graphics, including: battery voltage, wind turbine voltage, PV voltage , wind turbine power, PV power, wind turbine current, PV current, state of charge of battery. You can check the display content by the LCD four button.
Ø Perfect protection function:Battery overcharge, over discharge, anti-reverse protection; wind turbine current limiting, brake automatically and brake manually protection; PV anti-charge, anti-reverse protection; lightning protection and so on.
Ø Remote Communication Function: Choose the standard RS232/RS485/RJ45/GPRS communication interface, the software can monitor real-time system running status, which contain all the parameters on the LCD screen. Through the software, users can not only set and adjust relevant parameters, but also can control the wind turbine and solar panel running status, and alarm while malfunction happens.
Ø The optional dry contact signal output function: According to the actual needs of the battery, the dry contact signal will output when the battery voltage reaches the set voltage.
Ø The optional temperature compensation function: According to the change of the ambient temperature, the charging control voltage can be adjusted to charge the battery effectively.
Ø The optional off-line storage module: In the remote areas without network coverage and the use of computer inconvenience, you can use the storage function of the off-line storage module to view the history of the system running data ( data recorded within a year).
Ø Optional MPPT Charging Function: Real-time monitoring of wind turbine voltage and tracking the maximum voltage and current value (VI), so that wind and solar hybrid system for charging the battery by maximum power.
Ø The optional touch screen display: 4.3 inch TET touch screen display, and set the relevant parameters by operating the touch screen.
General Specification(600W-20KW)
| Model | Rated input power | Rated battery voltage | Optional function | Equipment feature | DC output | ||||||
| WWS | Wind solar hybrid controller | 6 | 0.6 kW | 24 | 24V | N | Normal | 0 | Normal | D | dc |
| 10 | 1kW | 48 | 48V | L | Low Voltage Charge | 1 | RS232 | ||||
| 20 | 2kW | 96 | 96V | D | Buck Voltage Charge | 2 | RS485 | ||||
| 30 | 3kW | 120 | 120V | B | Economic | 4 | Solar Dumpload Separately | ||||
| 50 | 5kW | 220 | 220V | S | Micro-current Charge | 10 | Wind Turbine | ||||
| Single Phase DC | |||||||||||
| 100 | 10kW | 240 | 240V | 11 | RS232 | ||||||
| Wind Turbine | |||||||||||
| Single Phase DC, | |||||||||||
| RS232 | |||||||||||
| 200 | 20kW | 12 | RS485 | ||||||||
| Wind Turbine | |||||||||||
| Single Phase DC, | |||||||||||
| RS232 | |||||||||||
| XX | Other | ||||||||||
600W, 1000W
| Model | WWS06-48-B00 | WWS10-24 | WWS10-48 |
| Rated Battery Voltage | 48V | 24V | 48V |
| Rated Wind Turbine Input Power | 600W | 1kW | 1kW |
| Maximum Wind Turbine Input Power | 900W | 1.5kW | 1.5kW |
| Wind turbine brake current | 13A | 42A | 21A |
| Rated solar Input Power | 300W | 0.3W | 0.3W |
| Charge Shutoff Voltage | 58V | 29V | 58V |
| Display mode | LCD | ||
| Cool mode | aluminium alooly shell radiating | Fan | |
| Protection grade | IP 53(indoor) | IP 20(indoor) | |
| Quiescent current | Less than 20mA | ||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||
| Manual brake | wind generator stop turning or slowing turning | ||
| Lightning protection | Lightning protection in inside of the controller. | ||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||
| System parameters | |||
| Ambient Temperature & Humidity Range | -20～+55℃/0-93%RH（No Condensation） | ||
| Altitude | less than 4000m | ||
| Dimensions (L x W x H) | 205*150*82mm | Controller:440×300×170mm; Dumpload box：410×270×175mm | Controller:440×300×170mm; Dumpload box：300×190×1120mm |
| Net Weight | 2.2kg | Controller ：7.5kg; Dump load box：7kg | Controller ：7.5kg; Dump load box：3.5kg |
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||
2KW
| Model | WWS20-48 | WWS20-96 | WWS20-110 | WWS20-120 | WWS20-220 |
| Rated Battery Voltage | 48V | 96V | 110V | 120V | 220V |
| Rated Wind Turbine Input Power | 2KW | 2KW | 2KW | 2KW | 2KW |
| Maximum Wind Turbine Input Power | 3KW | 3KW | 3KW | 3KW | 3KW |
| Wind turbine brake current | 42A | 21A | 19A | 17A | 10A |
| Rated solar Input Power | 600W | 600W | 600W | 600W | 600W |
| Charge Shutoff Voltage | 58V | 116V | 113V | 145V | 266V |
| Dimension (LxWxH) | 442*425*172mm | ||||
| Net Weight | 11.5kg | ||||
| Display mode | LCD | ||||
| Cool mode | Fan | ||||
| Quiescent current | Less than 20mA | ||||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||||
| Manual brake | wind generator stop turning or slowing turning | ||||
| Lightning protection | Lightning protection in inside of the controller. | ||||
| Protection grade | IP20 (Indoor) | ||||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||||
| System parameters | |||||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||||
| Altitude | less than 4000m | ||||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：410×430×175mm | ||||
| Net Weight | Controller ：8 kg; Dump load box：13 kg | ||||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||||
3KW
| Model | WWS30-48 | WWS30-96 | WWS30-110 | WWS30-120 | WWS30-240 |
| Rated Battery Voltage | 48V | 96V | 110V | 120V | 240V |
| Rated Wind Turbine Input Power | 3kW | 3kW | 3kW | 3kW | 3kW |
| Maximum Wind Turbine Input Power | 4.5kW | 4.5kW | 4.5kW | 4.5kW | 4.5kW |
| Wind turbine brake current | 63A | 32A | 28A | 25A | 13A |
| Rated solar Input Power | 900W | 900W | 900W | 900W | 900W |
| Charge Shutoff Voltage | 58V | 116V | 113V | 145V | 290V |
| Display mode | LCD | ||||
| Cool mode | Fan | ||||
| Quiescent current | Less than 20mA | ||||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||||
| Manual brake | wind generator stop turning or slowing turning | ||||
| Lightning protection | Lightning protection in inside of the controller. | ||||
| Protection grade | IP20 (Indoor) | ||||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||||
| System parameters | |||||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||||
| Altitude | less than 4000m | ||||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：540×430×175mm | ||||
| Net Weight | Controller ：7.5 kg; Dump load box：17 kg | ||||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||||
5KW
| Model | WWS50-48 | WWS50-96 | WWS50-120 | WWS50-220 | WWS50-240 |
| Rated Battery Voltage | 48V | 96V | 120V | 220V | 240V |
| Rated Wind Turbine Input Power | 5KW | 5KW | 5KW | 5KW | 5KW |
| Maximum Wind Turbine Input Power | 7.5KW | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| Wind turbine brake current | 105A | 52A | 42A | 23A | 21A |
| Rated solar Input Power | 1500W | 1500W | 1500W | 1500W | 1500W |
| Charge Shutoff Voltage | 58V | 116V | 145V | 266V | 290V |
| Display mode | LCD | ||||
| Cool mode | Fan | ||||
| Quiescent current | Less than 20mA | ||||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||||
| Manual brake | wind generator stop turning or slowing turning | ||||
| Lightning protection | Lightning protection in inside of the controller. | ||||
| Protection grade | IP20 (Indoor) | ||||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||||
| System parameters | |||||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||||
| Altitude | less than 4000m | ||||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：410×430×175mm | ||||
| Net Weight | Controller ：8 kg; Dump load box：13 kg | ||||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||||
10KW
| Model | WWS100-120 | WWS100-220 | WWS100-240 |
| Rated Battery Voltage | 120V | 220V | 220V |
| Rated Wind Turbine Input Power | 10KW | 10KW | 10KW |
| Maximum Wind Turbine Input Power | 15KW | 15KW | 15KW |
| Wind turbine brake current | 84A | 46A | 42A |
| Rated solar Input Power | 3KW | 3KW | 3KW |
| Charge Shutoff Voltage | 145V | 266V | 290V |
| Display mode | LCD | ||
| Cool mode | Fan | ||
| Quiescent current | Less than 20mA | ||
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | ||
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | ||
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | ||
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | ||
| Manual brake | wind generator stop turning or slowing turning | ||
| Lightning protection | Lightning protection in inside of the controller. | ||
| Protection grade | IP20 (Indoor) | ||
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | ||
| System parameters | |||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | ||
| Altitude | less than 4000m | ||
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：520×430×675mm | ||
| Net Weight | Controller ：9 kg; Dump load box：45kg | ||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||
20KW
| Model | WWS200-120 | WWS200-220 |
| Rated Battery Voltage | 220V | 240V |
| Rated Wind Turbine Input Power | 20KW | 20KW |
| Maximum Wind Turbine Input Power | 30KW | 30KW |
| Wind turbine brake current | 91 | 84A |
| Rated solar Input Power | 6KW | 6KW |
| Charge Shutoff Voltage | 266V | 290V |
| Display mode | LCD | |
| Cool mode | Fan | |
| Quiescent current | Less than 20mA | |
| Reverse battery protection | anti-reverse-connection protection device in the inside of controller. | |
| Open circuit protection | The controller will not be demaged if the battary in open circuit. | |
| Solar anti-charge protection | Battery don’t charge PV board in reverse. | |
| Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. | |
| Manual brake | wind generator stop turning or slowing turning | |
| Lightning protection | Lightning protection in inside of the controller. | |
| Protection grade | IP20 (Indoor) | |
| Insulation resistance | Resistance between DC/AC input and the housing: more than 50ΜΩ | |
| System parameters | ||
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH（No Condensation） | |
| Altitude | less than 4000m | |
| Dimensions (L x W x H) | Controller:440×300×170mm; Dumpload box：680*420*675mm | |
| Net Weight | Controller ：10 kg; Dump load box：75kg | |
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | ||
