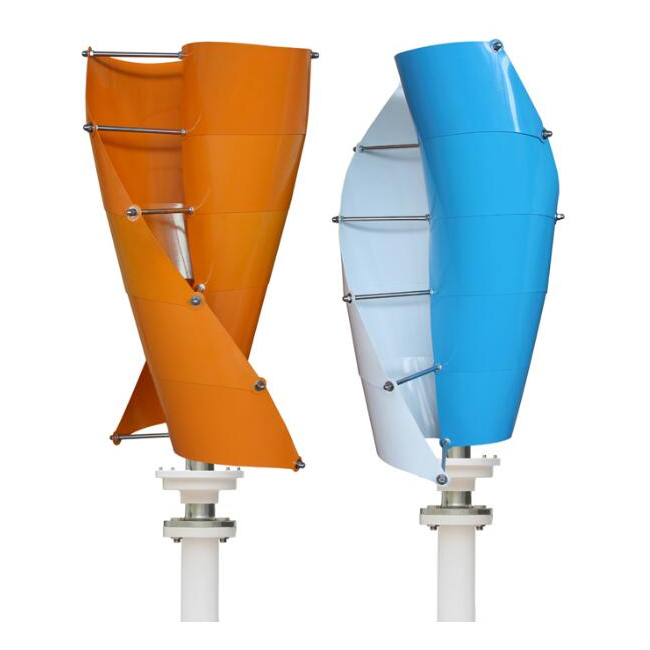

EN-SV
ENGELEC
Specification sheet
| Model | EN-100W-SV | EN-200W-SV | EN-300W-SV | EN-400W-SV | EN-500W-SV |
| Rated power | 100W | 200W | 300W | 400W | 500W |
| Max power | 130W | 220W | 310W | 410W | 510W |
| Nominal voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Start-up wind speed | 1.5m/s | 1.5m/s | 2m/s | 2m/s | 2.0m/s |
| Rated wind speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s |
| Survival wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s |
| Top net weight | 13.5kg | 17kg | 19kg | 21kg | 23kg |
| Wind wheel diameter | 0.46m | 0.46m | 0.54m | 0.54m | 0.54m |
| Number of blades | 10pcs | 12pcs | 8pcs | 8pcs | 8pcs |
| Blades material | Aluminum alloy | ||||
| Generator | Maglev generators | ||||
| Controller system | Electromagnetic | ||||
| Speed regulation | The wind Angle automatically | ||||
| Working temperature | -40℃～80℃ | ||||
Feature
· Low starting wind speed, compact, light, beautiful and with little vibration.
· Easy installation, flange connection
· Blades using aluminum alloy, spray-paint and oxidation treatment of the blades surface, strengthen the anti-corrosion level, more beautiful and durable
· Blades color optional
· Patented permanent magnet ad generator with special stator(maglev generator), effectively reduce torque, make only 1/3 torque of ordinary generator, well match the wind wheel and generator, and ensure the performance of whole system.
