ENGELEC Hydro is a Manufacturer of hydroelectric generators submersible propeller and submersible turbine generator. We supply Good Price, High quality submersible turbine generator.

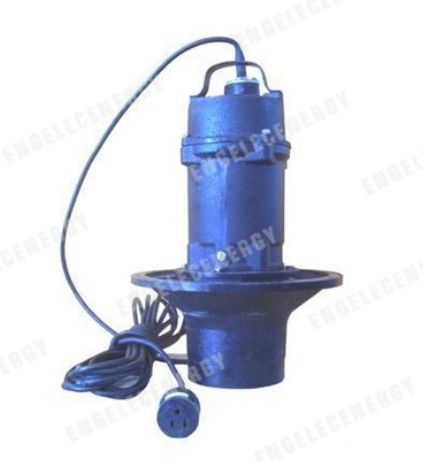

550w(0.55kw) Submersible Hydro Turbine Generator
| Main Parameters of Submersible Turbine Generator | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Model | SH550W | Single Nozzle Turgo Turbine | |
| 2 | Rated Head | 12–18 | (meters) | |
| 3 | Rated Flow | 5–7 | (l/s) | |
| 4 | Output | 500 | (W) | |
| 5 | Efficiency | 70 | (%) | |
| 6 | Pipe Diameter | 50 | (mm) | |
| Generator | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Model | SF0.5-4 | Permanent Magnet Generator | |
| 2 | Style | PMG | ||
| 3 | Output | 500 | (W) | |
| 4 | Voltage | 230 or 110 | (V) | |
| 5 | Current | 2.17 | (A) | |
| 6 | Frequency | 50 or 60 | (HZ) | |
| 7 | Rotary Speed | 1500 | (RPM) | |
| 8 | Phase | Single | (Phase) | |
| 9 | Power Factor | 1.0 | ||
| 10 | Altitude | ≤3000 | (meters) | |
| 11 | Insulation Grade | B / B | ||
| 12 | Protection Grade | IP44 | ||
| 13 | Temperature | －25～＋50 | ℃ | |
| 14 | Relative Humidity | ≤90 | % | |
| Control Box / Control Panel | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Model | WY0.5-1 | ||
| 2 | Safety Protection | Short circuit Protection | ||
| 3 | Insulation Protection | |||
| 4 | Over Load Protection | |||
| 5 | Grounding Fault Protection | |||
| Packing | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Packing Material | Fiberboard | ||
| 2 | Packing Size | 38×34×40 | (CM) | |
| 4 | Gross Weight | 27 | (KGS) | |
If you are looking for submersible turbine generator, you’ve come to the right site.
ENGELEC is a manufacturer of submersible turbine generator, submersible hydro generator with good price.
