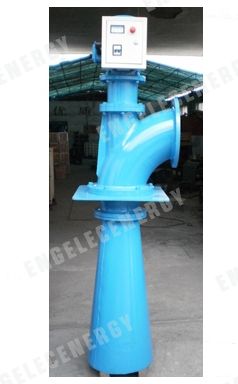

| Main Parameters of 3kw Hydro Turbine | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Model | TT3KW | Vertical Tubular Turbine | |
| 2 | Rated Head | 11 | (meters) | |
| 3 | Rated Flow | 45 | (l/s) | |
| 4 | Output | 3000 | (W) | |
| 5 | Efficiency | 70 | (%) | |
| 6 | Pipe Diameter | 150 | (mm) | |
| Generator | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Model | SF3.0-4 | Permanent Magnet Generator | |
| 2 | Style | PMG | ||
| 3 | Output | 3000 | (W) | |
| 4 | Voltage | 230 or 110 | (V) | |
| 5 | Current | 13.04 | (A) | |
| 6 | Frequency | 50 or 60 | (HZ) | |
| 7 | Rotary Speed | 1500 | (RPM) | |
| 8 | Phase | Single | (Phase) | |
| 9 | Power Factor | 1.0 | ||
| 10 | Altitude | ≤3000 | (meters) | |
| 11 | Insulation Grade | B / B | ||
| 12 | Protection Grade | IP44 | ||
| 13 | Temperature | －25～＋50 | ℃ | |
| 14 | Relative Humidity | ≤90 | % | |
| Control Box / Control Panel | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Model | WY3.0-1 | ||
| 2 | Safety Protection | Short circuit Protection | ||
| 3 | Insulation Protection | |||
| 4 | Over Load Protection | |||
| 5 | Grounding Fault Protection | |||
| Packing | ||||
| No. | Items | Parameters | Remarks | |
| 1 | Packing Material | Fiberboard | ||
| 2 | Packing Size | 142×65×60 | (CM) | |
| 4 | Gross Weight | 140 | (KGS) | |
TT series of micro hydro generator unit consists of the turbine Rear Earth Permanent Magnet brushless synchronization generator, which includes 20 types of single and three phases generator unit whose power output is from 3KW to 100KW.
The user can choose the type fits for the amount of coulomb and the flows of the water head.
The series of units is provided with the automatism control voltage and frequency.
The user can turn on or off the electric appliances (TV sets, recorders, etc) as wish on condition that the amount of coulomb does not exceed the nominal power output, and the user will feet it as convenient as the electrical net.
Before you use the hydro power generator units, please make sure that you read instruction manual carefully. And you choose the installation position of units, ditch construction, the inlet conduit installation, the electrical wire span and the adjustment of generator unit by the direction of the professional.
After the generator unit can work continuously or in preset time, you had better arrange the career man to do some manage work and maintenance according to the instruction manual and the safety electrical precautions.
