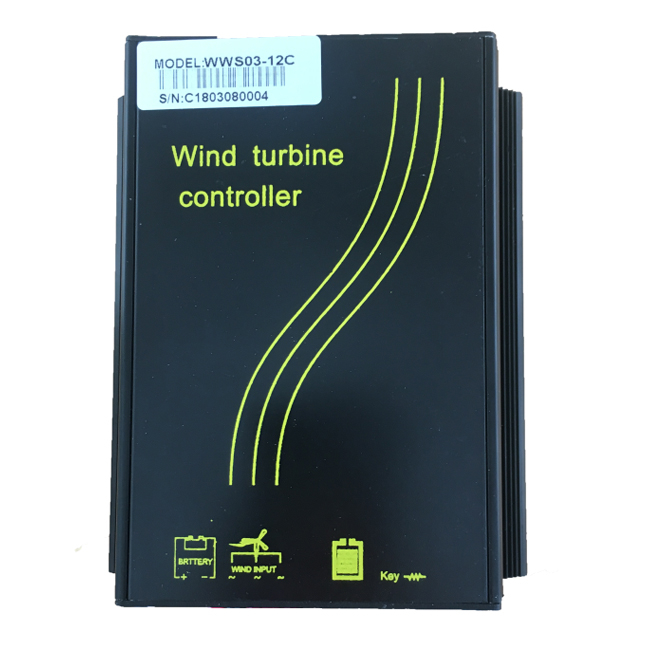

200W/300W/400W/600W 12v 24v wind generator charge controller intelligent wind turbine controller
This product is suitable for stand-alone wind power generation system and wind power monitoring system, wind and solar street lighting system, separate control of photovoltaic and fan, islands, fishing boats, etc..
Characteristic
•has simple structure and small volume
•perfect protection function
•super high performance price ratio
Product certification
•CE authentication
General Specification(200W-600W)
| Model | EWS02-12 | EWS03-12 | EWS04-24 | EWS06-24 | |
| Wind turbine | Rated wind turbine power | 200W | 300W | 400W | 600W |
| input specsspecs | Rated input voltage | 12Vdc | 12Vdc | 24Vdc | 24Vdc |
| Maximum input voltage | 18Vdc | 18Vdc | 28Vdc | 28Vdc | |
| Rated input current | 17Adc | 25Adc | 17Adc | 25Adc | |
| Maximum input current | 26Adc | 38Adc | 26Adc | 38Adc | |
| Wind turbine brake | Wind turbine overcurrent protection(optional) | 21Adc | 30Adc | 30Adc | 30Adc |
| Wind turbine manual brake | Press key for braking | ||||
| Optional braking condition | Wind turbine voltage, wind turbine rotated speed, wind speed | ||||
| output specs | Rated output voltage | 14.5Vdc | |||
| Matched rated battery voltage | 12Vdc | ||||
| Maximum output voltage | 16Vdc | ||||
| output over voltage(HVD)protection | 14.5Vdc | ||||
| Temperature compensation(optional) | -3mV/℃/2V | ||||
| output open circuit protection(Yes/No) | Yes | ||||
| Battery reversed connection protection(Yes/No) | Yes | ||||
| General specs | Standby loss | ≤0.3W | |||
| Wind power transform efficiency | ≥90% | ||||
| Display mode | LED | ||||
| Display contents | Battery voltage, brake indication | ||||
| Surge protection(Yes/No) | Yes | ||||
| Operating environment | -20℃~+40℃/≤95% | ||||
| Temperature/Humidity | |||||
| Altitude | ≤1000 m;it should reduce capacity according to GB/T859.2 when the altitude is above 1000m | ||||
| Noise | ≤65db(A) | ||||
| Cooling Mode | Natural cooling | ||||
| Protection degree | IP53 | ||||

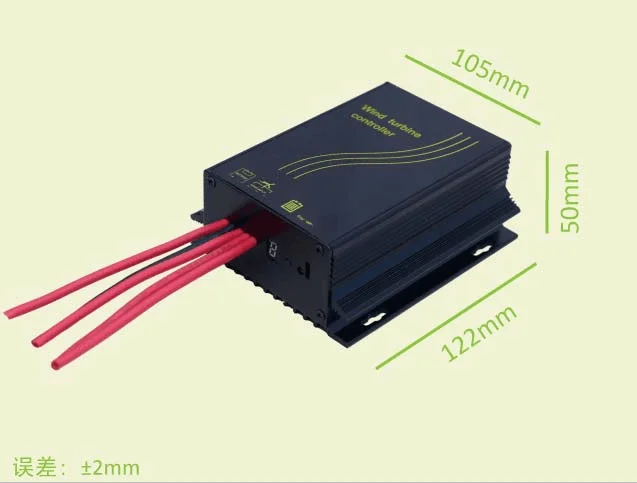

| Size | 120*105*49mm | ||||
| Weight | 0.8Kg | ||||
| Note: We are keeping making progress, the listed specs are just for your reference | |||||
