ENM-3K-80R Disc Coreless Generator Outer Rotor 3000W 80RPM Dia. 700MM Axial Flux Permanent Magnet Generator AFPMG 3KW
Features
Coreless, anhysteresis, slotless, have low starting torque.
No iron loss, have high efficiency.
Adopt unique coreless precision winding technology design precision coil.
Adopt the rare earth permanent magnet, which is multiple, mean gap, high power density and high output power.
Low speed direct driving, no torque fluctuations.
Compact structure, high ratio of power to volume.
No iron loss, low calorific value, small temperature rise.
Simple structure, easy to install.
The brushless structure, free maintenance.
Any power can be customized according to your requirements.
Specification sheet
Generator Type | ENM-3K-80R |
Structure | Outer roter |
Rated Power(KW) | 3KW |
Rated Speed(RPM) | 80RPM |
Rectified Rated Voltage(V) | 220V/380V as customize |
Generator diameter(MM) | 700MM |
Weight(kg) | 160kg |
Start torque(Nm) | <7.2Nm |
Rated torque(Nm) | 358Nm |
Efficiency | >90% |
Winding Type | Y |
Insulation Resistance | 500Mohm Min (500V DC) |
Leakage Current(mA) | <1 mA |
Insulation | F class |
Working Temperature Rise | ≤70℃ |
Working Temperature | -40℃ — 120℃ |
Generator | AC 3 phase rare earth maglev generator |
Stator type | Coreless |
Housing material | Aluminum Alloy |
Shaft material | Carbon Steel/Stainless Steel |
Bearing | NSK or SKF |
Desigh lifetime | >20 |

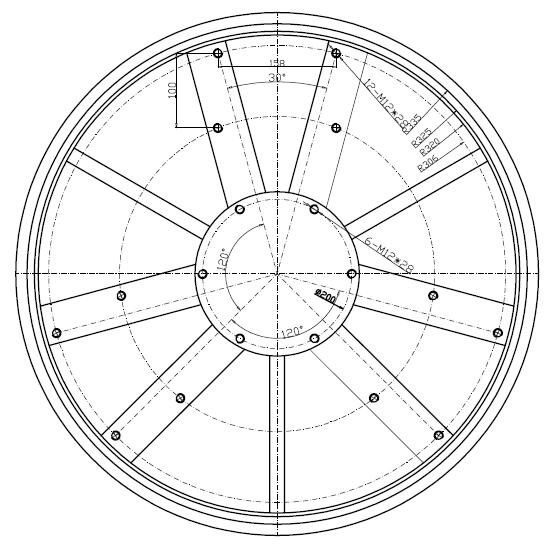

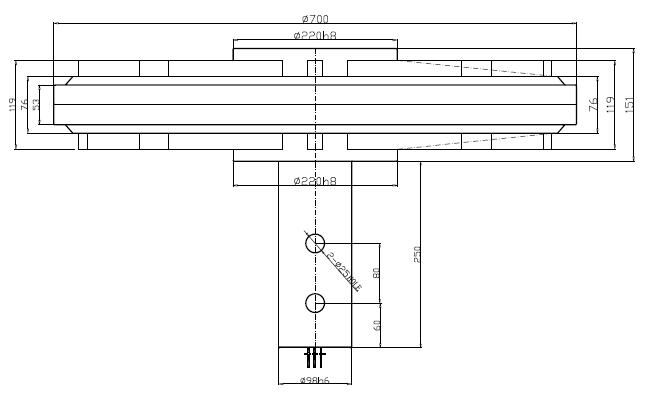

Drawing
We as the most professional supplier and manufacturer of wind turbines, we can accept one piece & instant delivery to any place in the world.
Our clients can choose the delivery service
by expresss
by air
by sea
by truck.
In Wooden Case Packing
