ENM-0.05K-250R Disc Coreless Generator Outer Rotor 50W 250RPM Dia. 165MM Permanent Magnet Generator

ENGELEC ENM-0.05K-250R disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc.
  • ENM-0.05K-250R

  • ENGELEC

  • ENM-0.05K-250R

Availability:

ENM-0.05K-250R Disc Coreless Generator Outer Rotor 50W 250RPM Dia. 165MM Permanent Magnet Generator


Product Description

Features

  • Coreless, anhysteresis, slotless, have low starting torque.

  • Coreless, anhysteresis, slotless, have low starting torque.

  • No iron loss, have high efficiency.

  • Adopt unique coreless precision winding technology design precision coil.

  • Adopt the rare earth permanent magnet, which is multiple, mean gap, high power density and high output power.

  • Low speed direct driving, no torque fluctuations.

  • Compact structure, high ratio of power to volume.

  • No iron loss, low calorific value, small temperature rise.

  • Simple structure, easy to install.

  • The brushless structure, free maintenance.

  • Any power can be customized according to your requirements.


Specification sheet

Generator Type ENM-0.05K-250R
Structure Outer roter
Rated Power(KW) 0.05KW
Rated Speed(RPM) 250RPM
Rectified Rated Voltage(V) 14V
Rectified Rated Current(A) 1.73A
Generator diameter(MM) 165MM
Weight(kg) 5kg
Start torque(Nm) <0.04Nm
Rated torque(Nm) 1.91Nm
Efficiency >90%
Winding Type Y
Insulation Resistance 500Mohm Min (500V DC)
Leakage Current(mA) <1 mA
Insulation F class
Working Temperature Rise ≤70℃
Working Temperature  -40℃ — 120℃
Generator AC 3 phase rare earth maglev generator
Stator type coreless
Housing material Aluminum  Alloy
Shaft material Carbon   Steel/Stainless Steel
Bearing NSK or SKF
Desigh lifetime >20

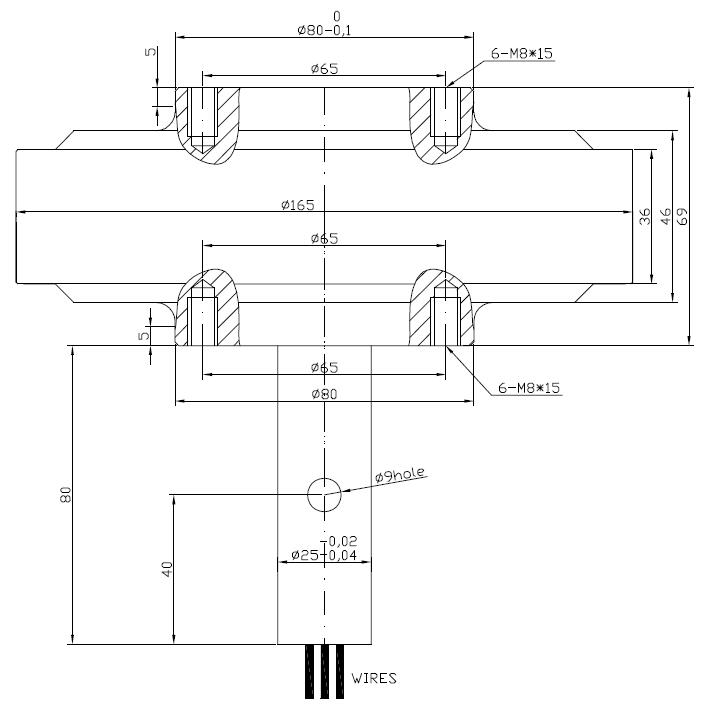

Drawing

Outer 165


电机组合2

电机组合3


Packaging & Delivery

We as the most professional supplier and manufacturer of wind turbines, we can accept one piece & instant delivery to any place in the world.

Our clients can choose the delivery service

  • by expresss

  • by air

  • by sea

  • by truck.

wind turbine delivery

In Wooden Case Packing

  Packinjg Photo

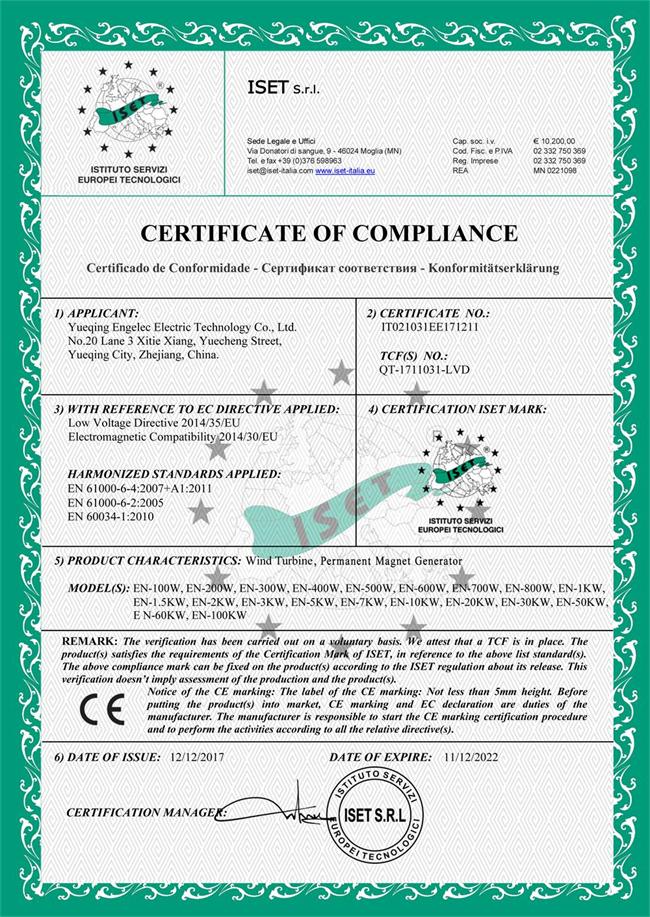

Certificates

650 CERTIFICATE ENGELEC CE-WIND TURBINE,PMG
