EESWM 600W 12V/24V
ENGELEC
EESWM Series 300W 600W Wind Solar Hybrid Controller with MPPT
Applications

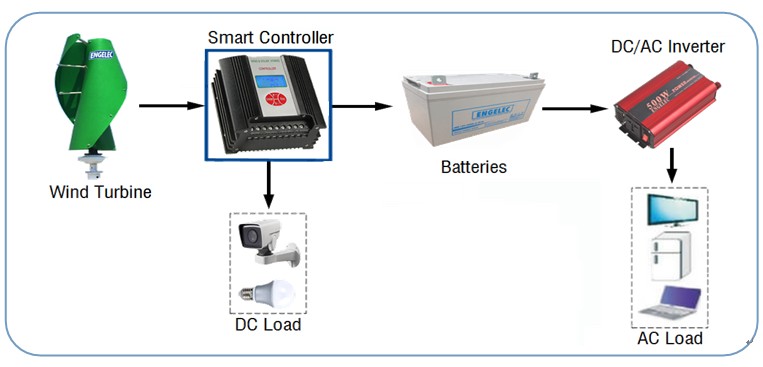

Product can be used to supply power for those street lights, monitoring devices, remote communication base stations, border posts and coastal islands. Besides, it can work well with vertical axis wind turbine.
Features
Ø Recognize 12V/24V battery automatically
Ø Wind turbine MPPT track point adjustable
Ø Electronic components in high quality
Ø Complete protection function
Ø Solar and wind generation capacity and electricity consumption visible.
Ø Seven modes of load output optional.
Ø RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee monitoring modes optional
Ø Compatible with standard MODBUS communication protocol
Technical Parameters
| Model | EEWSM06-24-24 |
| Wind Turbine Input | |
| Rated input power | 300W(12V Battery) |
| 600W(24V Battery) | |
| Input voltage range | 0~16Vdc(12V Battery) |
| 0~32Vdc(24V Battery) | |
| Start charge voltage | 2Vdc(factory default,2Vdc~15Vdc settable) |
| 4Vdc(factory default,4Vdc~30Vdc settable) | |
| Rated input current | 22Adc |
| Manual Brake | Keep press the button for 5s to unload completely, and then recover by hand. |
| Brake by over current | 26A (factory default,0~26A settable) unload completely |
| when reached the set current, and recover automatically | |
| after working 10mins. | |
| Brake by overvoltage | Refer to “output overvoltage” control |
| Brake by over wind | 18m/s (0-30m/s settable), unload completely |
| speed (optional) | when reached the set wind speed, and recover automatically after working 10mins. |
| Brake by over rotational | 500r/min (factory default,0~1500r/min settable), unload completely |
| Speed (optional) | when reached the set rotational speed, and recover automatically after working 10mins. |
| PV Input | |
| Rated input power | 150W(12V Battery)/300W(24V Battery) |
| Max. Open circuit voltage | 24V(12V Battery)/48V(24V Battery) |
| Rated input current | 13A |
| Reversed connection | YES |
| protection | |
| Charge Parameters | |
| Rated battery voltage | 24V/12V *recognize automatically |
| Temperature compensation | -3mV/℃/2V |
| function (optional) | |
| Output Parameters | |
| Rated output voltage | 24V/12V *recognize automatically |
| Output overvoltage point | 28V (factory default,22Vdc~32Vdc settable) |
| 14V (factory default,11Vdc~16Vdc settable) | |
| Output overvoltage recovery point | 25.4V (factory default, reduce 2.6V from the output overvoltage point) |
| 12.7V (factory default, reduce 1.3V from the output overvoltage point) | |
| Max. Output current | 25A |
| DC Load Output | |
| Output loops | 2 loops |
| Output control mode | Both 2 loops could be set in 7 modes, such as light control on&off, light control on and time control off. |
| Output voltage range | 21.6V~32V (24V battery); 10.8V~16V (12V battery) |
| Undervoltage recovery point | Refer to "rated battery voltage" |
| Rated output current | 10A/each loop |
| Overload protection | 120% rated DC output -1min,150% rated DC output -10s |
| Short circuit protection | Instant protection |
| General Parameters | |
| Rectifier mode | Uncontrolled rectifier |
| Display mode | LCD |
| Display information | Battery voltage, wind turbine voltage/current/ power, PV power/voltage/current, light control on voltage, |
| light control off voltage, time control duration, load current, wind power generation capacity, | |
| solar power generation capacity, load power consumption, and so on. | |
| Monitoring mode (optional) | RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee |
| Monitoring Contents | Real-time display: Battery voltage, wind turbine voltage/current/ power, PV power/voltage/current, wind power generation capacity, solar power generation capacity, Battery status, wind turbine status, day and night, DC overload, DC load short circuit, and so on. |
| Parameter setting：Output overvoltage point, wind turbine over current point, wind turbine start voltage, DC load overvoltage/undervoltage/undervoltage recovery point, output mode choice for two loops,light control on voltage, light control off voltage, and wind turbine brake settings. | |
| Lightning protection | YES |
| Static loss | ＜0.6W |
| Ambient temperature | -20℃～+40℃ |
| Humidity | 5%~95%,No condensing |
| Noise | ≤65dB |
| Cooling mode | Natural cooling |
| Installation mode | Wall-mounted |
| Cover protection class | IP52 |
| Product dimension (W*H*D) | 150×220×83mm |
| Product net weight | 2.3kg |
| Note: the listed specs are just for your reference | |
| Rated input current | 7A |
| Reversed connection protection | YES |
| Charge Parameters | |
| Rated battery voltage | 48V |
| Temperature compensation function (optional) | -3mV/℃/2V |
| Output Parameters | |
| Rated output voltage | 48V |
| Output overvoltage point | 58V (factory default,44Vdc~64Vdc settable) |
| Output overvoltage recovery point | 52.8V (factory default, reduce 5.2V from the output overvoltage point) |
| Max. Output current | 13A |
| DC Load Output(Optional) | |
| Output loops | 2 loops |
| Output control mode | Both 2 loops could be set in 7 modes, such as light control on&off, light control on and time control off. |
| Output voltage range | 43.2V~64V |
| Undervoltage recovery point | Refer to "rated battery voltage" |
| Rated output current | 10A/each loop |
| Overload protection | 120% rated DC output -1min,150% rated DC output -10s |
| Short circuit protection | 200% rated DC output, instant protection |
| General Parameters | |
| Rectifier mode | Uncontrolled rectifier |
| Display mode | LCD |
| Display information | Battery voltage, wind turbine voltage/current/ power, PV power/voltage/current, light control-on voltage, light control-off voltage, time control duration, load current and so on. |
| Monitoring mode (optional) | RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee |
| Monitoring Contents | Real-time display: Battery voltage, wind turbine voltage/current/ power, PV power/voltage/current, wind power generation capacity, solar power generation capacity, Battery status, wind turbine status, day and night, DC overload, DC load short circuit, and so on. |
| Parameter setting：Output overvoltage point, wind turbine over current point, wind turbine start voltage, DC load overvoltage/undervoltage | |
| /undervoltage recovery point, output mode choice for two loops, light control on voltage, light control off voltage, and wind turbine brake settings. | |
| Lightning protection | YES |
| Conversion efficiency | ≥95% |
| Static loss | ＜0.5W |
| Environment temperature | -20℃～+40℃ |
| Humidity | 5%~95%,No condensing |
| Noise | ≤65dB |
| Cooling mode | Natural cooling |
| Installation mode | Wall-mounted |
| Cover protection class | IP52 |
| Product dimension (W*H*D) | 150×205×82mm |
| Product net weight | 2.8kg |
| Note: the listed specs are just for your reference | |
