3KW-100KW Francis Turbine Generator 220V/380V Hydroelectric Generators Hydro Water Turbine

Home » Hydropower Generator » 3KW-100KW Francis Turbine Generator 220V/380V Hydroelectric Generators Hydro Water Turbine

Product Description

Kaplan Brushless Excitation Generator Hydroelectric Generators Hydro Water Turbine

Francis Turbine Generator;

Power: 3 - 100kW;

Voltage: Customized;

Frequency: Customized;

Water head: 5 - 150m;

Flow: 0.005 - 0.2m³/s;

Fluid: water, physical and chemical properties similar to water;

Temperature: below 50℃.

Francis water turbine generator is composed of hydraulic turbine and generator using coupling. Hydraulic turbine is mainly composed of volute, impeller, main shaft, seal and suspension et al. As high pressure fluid is guided through inlet pipe into turbine volute, the fluid would force the impeller to rotate. Electricity is generated when the rotor rotates with respect to the stator.

The auto voltage regulator (AVR) is installed within generator to control the

output voltage to rated voltage. The induction generator includes brush type induction generator and brushless type induction generator. The brush of brush type generator needs to be replaced periodically. An induction system is installed in induction generator; no exoteric trigger device is required which is easy and user friendly.

Francis turbine is horizontally mounted. Its advantages are as follows:

1. Pipe inlet and pipe outlet, which is easy to install;

2. Turbine and generator are separated, which is easy to maintain;

3. Turbine has 2-3 bearings; generator has 2 bearings, which is more reliable;

4. The separate oil lubrication system of turbine ensures a longer life span of

bearings.

Specification:

P/kw	Head/m	Flow m3/s	Minal inlet pipe inner dia./mm	Suggested head/m
3kw	10-25m	0.011-0.036	100	20
3kw	12-40m	0.005-0.019	80	30
5kw	25-60m	0.005-0.019	80	50
	12-50m	0.008-0.03	100	30
	10-30m	0.016-0.055	150	20
8kw	20-60m	0.008-0.035	100	60
	12-35m	0.016-0.055	150	30
	10-25m	0.02-0.075	200	20
10kw	20-70m	0.008-0.035	125	60
	15-35m	0.02-0.06	150	35
	10-25m	0.025-0.075	200	20
15kw	10-50m	0.016-0.1	200	30
	12-80m	0.016-0.055	150	50
	30-125m	0.008-0.033	100	100
20kw	10-35m	0.08-0.25	200	30
	12-60m	0.025-0.15	200	40
	25-80m	0.016-0.055	150	60
30kw	15-50mm	0.03-0.24	250	30
	15-50m	0.02-0.15	200	40
	30-100m	0.015-0.075	150	80
50kw	30-100m	0.02-0.1	200	100
	25-70m	0.03-0.15	250	60
	15-50m	0.06-0.22	300	40
100kw	15-50m	0.055-0.4	350	40
	25-100m	0.055-0.25	300	60
	30-100m	0.03-0.15	250	80
	30-120m	0.03-0.15	200	100

paste-pic-dp_uuid_6huro

paste-pic-dp_uuid_1ddc7

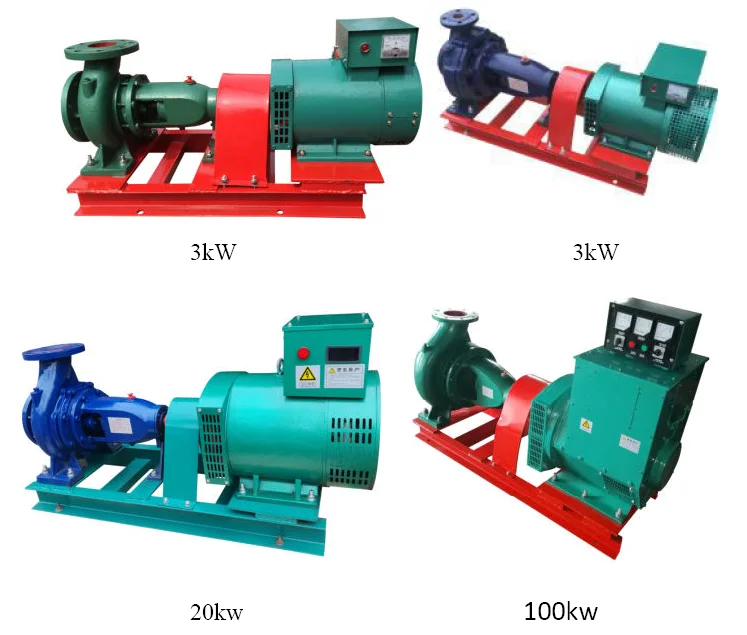

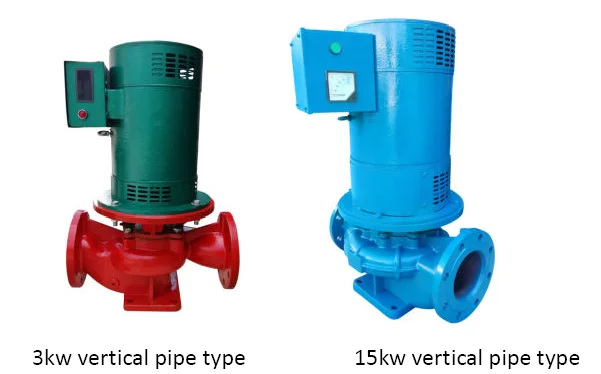

The Photos:

paste-pic-dp_uuid_ls9kz

paste-pic-dp_uuid_l7b8x

Application

paste-pic-dp_uuid_luisr
